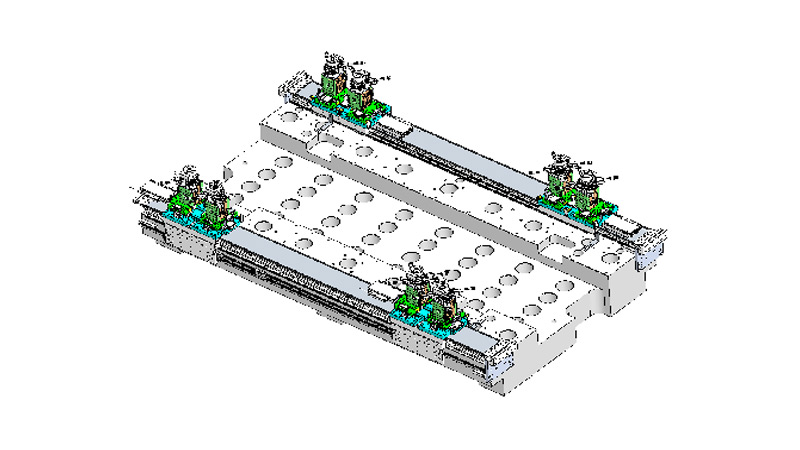

The equipment needs to be compatible with the assembly of multiple types of cameras, requiring a large Z-axis stroke and high precision. The equipment can achieve loading and unloading, dispensing, height measurement, and AA assembly. The equipment is div
All axes of the fine-tuning platform adopt a modular design and are matched according to degrees of freedom and load.
The base is made of marble, with dimensions of 1330×2170, ensuring a micron-level installation surface.
The double-motor shafts of A1/A2 or B1/B2 adopt independent tracks to block the transmission of vibrations.
XY-axis accuracy ±0.5 μm, Z-axis accuracy ±0.2 μm
Optimize the small X-axis motor in the same direction to enhance thrust and resist acceleration shock.
