DDR motors are torque motors that directly drive the load without any transmission components. DDR motors have a compact structure and high rigidity.
Strong. They generate high torque by using high-energy permanent magnets. At the same time, they are equipped with built-in optical encoders, which make the system have better positioning accuracy.
Higher bit precision and a more dynamic response. The use of high-rigidity crossed roller bearings enhances the mechanical characteristics of the system.
Download

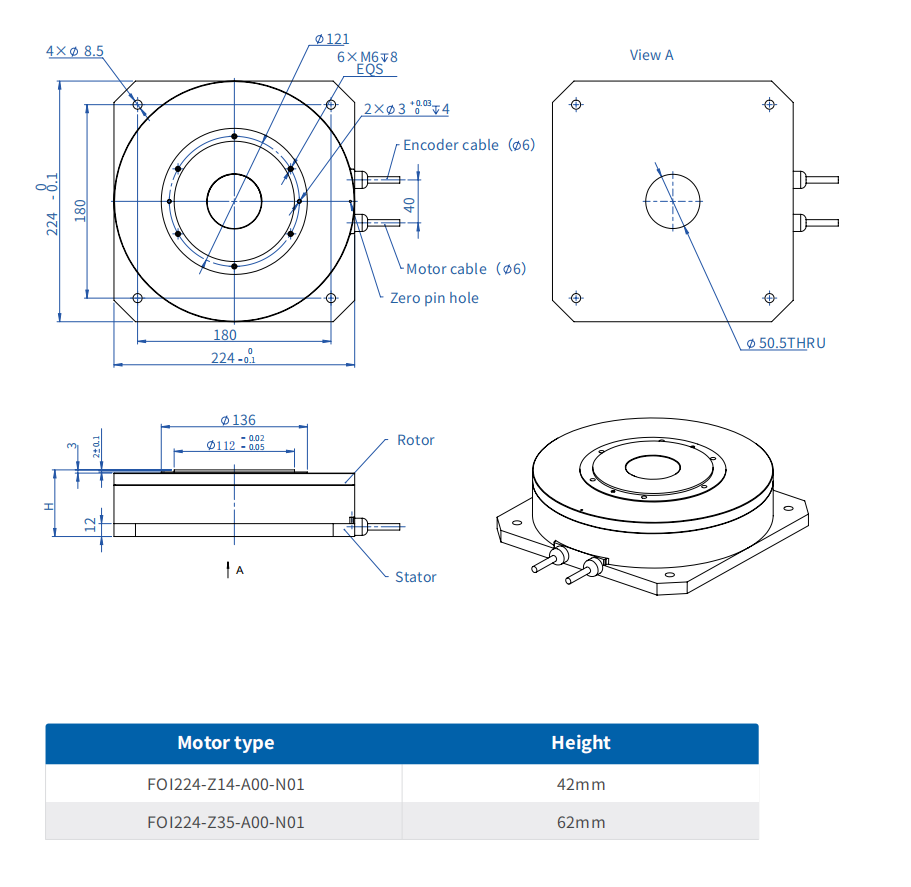

| FO1224 Series Technical Data | ||||
| Specification | FOI224-Z14-A00-N01 | FOI224-Z35-A00-N01 | ||
| Rated voltage | V | 220 | 220 | |
| Peak torque | N.m | 42 | 105 | |
| Continuous torque | N.m | 14 | 35 | |
| Maximum velocity | rps | 7.5 | 3 | |
| Continuous velocity | rps | 6 | 2 | |
| Rotation position | Encoder resolution | pulse/rev | 3005400 | 4194304 |
| Engraved line number | Lines | 11740 | 16384 | |
| Absolute accuracy | arc-sec | ±25 | ±25 | |
| Repeatability accuracy | arc-sec | ±2.5 | ±2.5 | |
| Zero point | pulse/rev | 1 | 1 | |
| Maximum power | KVA | 1.97 | 2 | |
| Rated power | KVA | 0.53 | 0.45 | |
| Torque constant | Nm/Arms | 6.4 | 16 | |
| Back EMF constant | Vp/(krpm) | 547.2 | 1368 | |
| Terminal Resistance | p | 8.4 | 13.9 | |
| Terminal Inductance | mH | 15.5 | 46 | |
| Continuous current | Arms | 2.2 | 2.2 | |
| Peak current | Arms | 6.6 | 6.6 | |
| Pole pairs | - | 20 | 20 | |
| Load | Rotor inertia | kg.cm2 | 180 | 200 |
| Axial load(forward) | N | 2000 | 2000 | |
| Axial load(inversion) | N | 1000 | 1000 | |
| radial lad | Nm | 60 | 200 | |
| Mechanical accuracy | μm | 8 | 8 | |
| Weight | kg | 5.5 | 8.9 | |
