The top and lateral view with just one camera
No image matching software ,fast image analysisUniqueoptical design

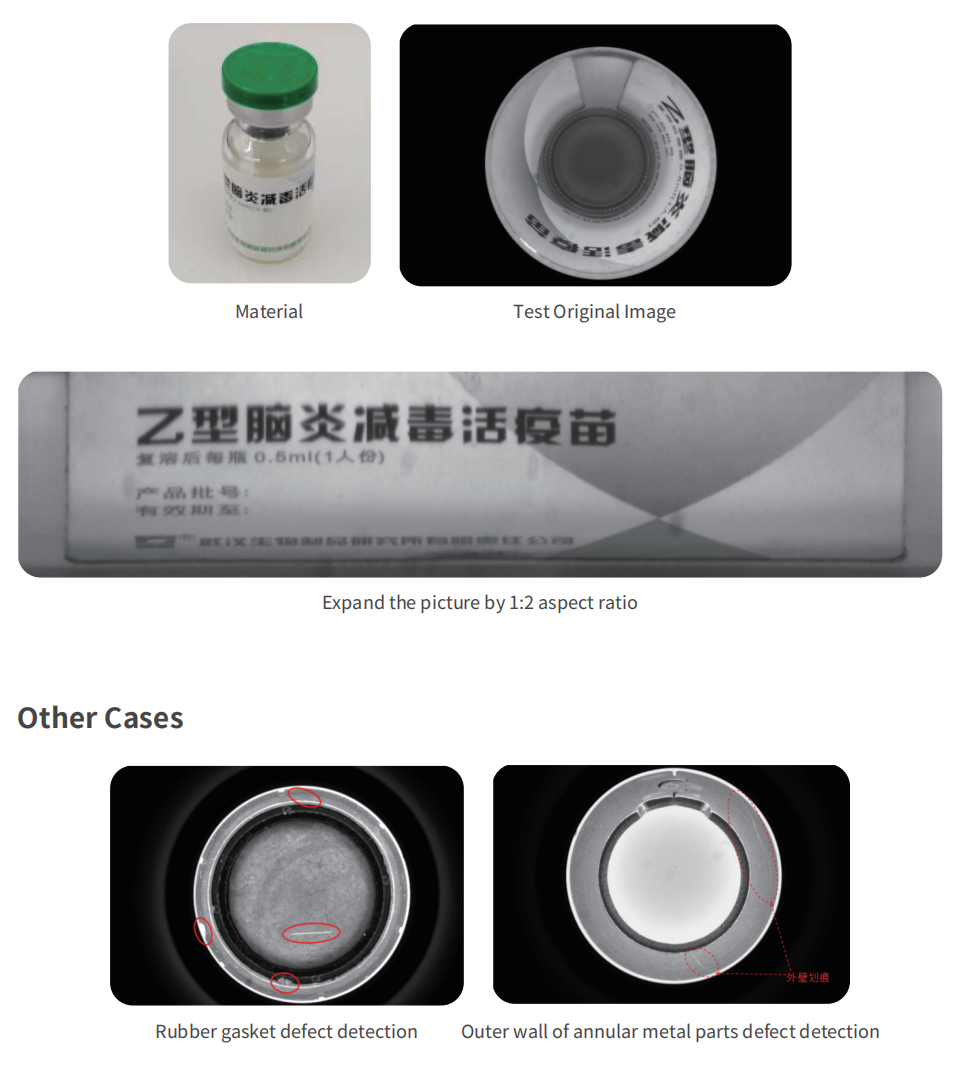

Suitable for cylinder surface character recognition and defect detection
It is applicable to character recognition and defect detection on the surface of cylindrical objects
Download
| Model | WD mm |
MTF30 |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mm×mm |
Object Field of View Diameter x Depth(mm×mm)2/3"8.45*7.07 |
||
| Min | Typical | Max | |||||||
| TCSHP125-1232 | 1~28 | 90 | 450-650 | 10 | C | Ф70×282.4 | 10.00×5.00 | 15.00×25.00 | 35.00×5.00 |
| Diameter mm |
Height mm |
WD mm |
Height mm |
WD |
Height mm |
WD mm |
Height mm |
WD mm |
Height mm |
WD mm |
Height mm |
WD mm |
| 10 | 5 | 28 | 10 | 23 | 15 | 18 | 20 | 13 | 25 | 8 | 30 | 3 |
| 15 | 5 | 23 | 10 | 18 | 15 | 13 | 20 | 8 | 25 | 3 | - | - |
| 20 | 5 | 18 | 10 | 13 | 15 | 8 | 20 | 3 | - | - | - | - |
| 25 | 5 | 13 | 10 | 8 | 15 | 3 | - | - | - | - | - | - |
| 30 | 5 | 8 | 10 | 3 | - | - | - | - | - | - | - | - |
| 35 | 5 | 3 | - | - | - | - | - | - | - | - | - | - |
