The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

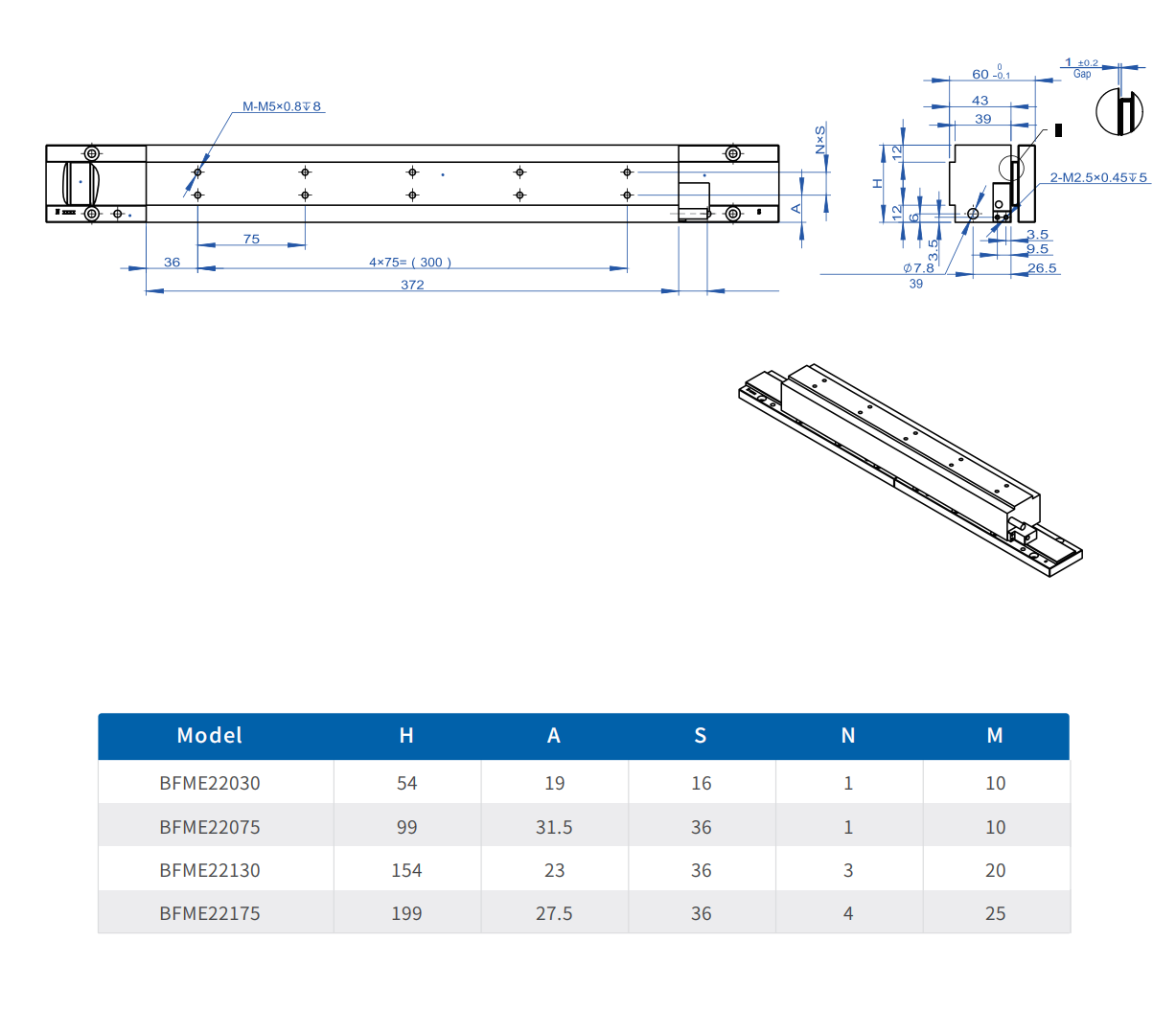

| BFME22 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFME22030 | BFME22075 | BFME22130 0 | BFME22175 |
| Peak Force | FP | N | 858 | 2145 | 3718 | 5005 |
| Continuous Force | FC | N | 396 | 990 | 1716 | 2310 |
| Motor Constant | Km | N/SQRT (W) | 32.3 | 60.2 | 84.5 | 100.1 |
| Peak Current | IP | Arms | 28 | 28 | 28 | 28 |
| Continuous Current | IC | Arms | 10 | 10 | 10 | 10 |
| Resistance@25°℃ | Rm | Ohms L-L | 1 | 1.8 | 2.75 | 3.55 |
| Inductance | L | mH L-L | 8.4 | 19.7 | 36.4 | 49 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 32.4 | 81 | 140.4 | 189 |
| Force Constant | Kf | N/Arms | 39.6 | 99 | 171.6 | 231 |
| Electrical Time Constant | Te | ms | 8.4 | 10.9 | 13.2 | 13.8 |
| Electrical Cycle(N to N) | 2t | mm | 32 | 32 | 32 | 32 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 2.9 | 7.3 | 12.7 | 17.2 |
| Coil Mass | MC | kg | 4.8 | 9.6 | 17 | 22.5 |
| Track Mass | MW | kg/m | 5.4 | 10.1 | 16 | 20.5 |
