Fast focus in milliseconds
Focus without mechanical movement
Ultra-compact structure,High resolution
Extremely wide zoom range,Ultra-low distortion
Suitable for machine vision,sorting and recognition applications
适用于机器视觉、分拣和识别等应用
Download
|
Model
|
Mag. (×)
|
WD mm |
Detector Type |
fective F Number
|
esolution
|
TV Distortion % |
Mount | Dimensions mm×mm |
FOV1" mm×mm |

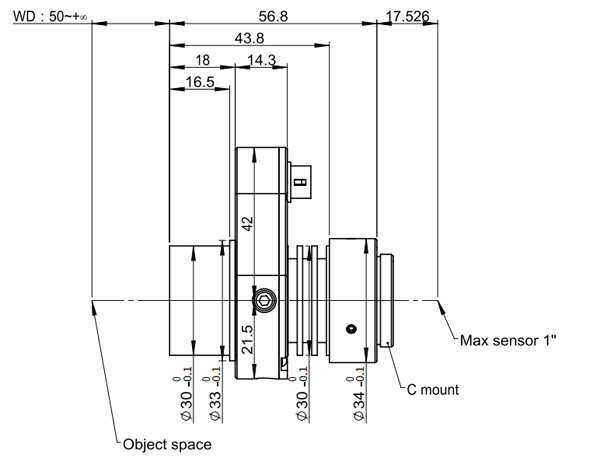

| TCGLP1-022-120 | 0~0.447 | 50~∞ | 1" | 15.5 | 13.9 | ≤0.15 | C | Ф30×56.8 | 29.37×19.60~∞ |

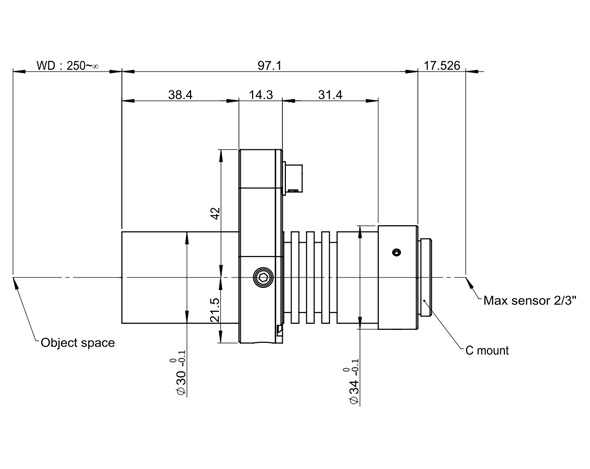

| TCGLP23-016-360 | 0~0.215 | 250~∞ | 2/3" | 12.7 | 27.8 | ≦0.1 | C | Ф30×97.1 | 39.30×32.88~∞ |
| Model | WD mm |
Mag | 1" 13.13*8.76mm |
FOV（mm） 2/3" 8.45*7.07mm |
1/1.8 7.16*5.44mm |
|||
| H | V | H | V | H | V | |||
| TCGLP1-022-120 | 1000 | 0.032430 | 404.9 | 270.1 | 260.6 | 218.0 | 220.8 | 167.7 |
| 950 | 0.034155 | 384.4 | 256.5 | 247.4 | 207.0 | 209.6 | 159.3 | |
| 900 | 0.036225 | 362.5 | 241.8 | 233.3 | 195.2 | 197.7 | 150.2 | |
| 850 | 0.038295 | 342.9 | 228.8 | 220.7 | 184.6 | 187.0 | 142.1 | |
| 800 | 0.040365 | 325.3 | 217.0 | 209.3 | 175.2 | 177.4 | 134.8 | |
| 750 | 0.043125 | 304.5 | 203.1 | 195.9 | 163.9 | 166.0 | 126.1 | |
| 700 | 0.045540 | 288.3 | 192.4 | 185.6 | 155.2 | 157.2 | 119.5 | |
| 650 | 0.048990 | 268.0 | 178.8 | 172.5 | 144.3 | 146.2 | 111.0 | |
| 600 | 0.053130 | 247.1 | 164.9 | 159.0 | 133.1 | 134.8 | 102.4 | |
| 550 | 0.057615 | 227.9 | 152.0 | 146.7 | 122.7 | 124.3 | 94.4 | |
| 500 | 0.062790 | 209.1 | 139.5 | 134.6 | 112.6 | 114.0 | 86.6 | |
| 450 | 0.069345 | 189.3 | 126.3 | 121.9 | 102.0 | 103.3 | 78.4 | |
| 400 | 0.077267 | 169.9 | 113.4 | 109.4 | 91.5 | 92.7 | 70.4 | |
| 350 | 0.088492 | 148.4 | 99.0 | 95.5 | 79.9 | 80.9 | 61.5 | |
| 300 | 0.101030 | 130.0 | 86.7 | 83.6 | 70.0 | 70.9 | 53.8 | |
| 250 | 0.119517 | 109.9 | 73.3 | 70.7 | 59.2 | 59.9 | 45.5 | |
| 200 | 0.146515 | 89.6 | 59.8 | 57.7 | 48.3 | 48.9 | 37.1 | |
| 150 | 0.188725 | 69.6 | 46.4 | 44.8 | 37.5 | 37.9 | 28.8 | |
| 100 | 0.265373 | 49.5 | 33.0 | 31.8 | 26.6 | 27.0 | 20.5 | |
| 50 | 0.446627 | 29.4 | 19.6 | 18.9 | 15.8 | 16.0 | 12.2 | |
| Model | WD mm |
Mag | 1" 13.13*8.76mm |
FOV（mm） 2/3" 8.45*7.07mm |
1/1.8 7.16*5.44mm |
|||
| H | V | H | V | H | V | |||
| TCGLP23-016-360 | 1000 | 0.070610 | 119.7 | 100.1 | 101.4 | 77.0 | 80.7 | 60.6 |
| 950 | 0.073925 | 114.3 | 95.6 | 96.9 | 73.6 | 77.1 | 57.9 | |
| 900 | 0.077585 | 108.9 | 91.1 | 92.3 | 70.1 | 73.5 | 55.2 | |
| 850 | 0.081608 | 103.5 | 86.6 | 87.7 | 66.7 | 69.8 | 52.4 | |
| 800 | 0.086053 | 98.2 | 82.2 | 83.2 | 63.2 | 66.2 | 49.7 | |
| 750 | 0.091043 | 92.8 | 77.7 | 78.6 | 59.8 | 62.6 | 47.0 | |
| 700 | 0.096543 | 87.5 | 73.2 | 74.2 | 56.3 | 59.0 | 44.3 | |
| 650 | 0.102820 | 82.2 | 68.8 | 69.6 | 52.9 | 55.4 | 41.6 | |
| 600 | 0.110074 | 76.8 | 64.2 | 65.0 | 49.4 | 51.8 | 38.9 | |
| 550 | 0.118235 | 71.5 | 59.8 | 60.6 | 46.0 | 48.2 | 36.2 | |
| 500 | 0.127642 | 66.2 | 55.4 | 56.1 | 42.6 | 44.7 | 33.5 | |
| 450 | 0.138911 | 60.8 | 50.9 | 51.5 | 39.2 | 41.0 | 30.8 | |
| 400 | 0.152415 | 55.4 | 46.4 | 47.0 | 35.7 | 37.4 | 28.1 | |
| 350 | 0.168732 | 50.1 | 41.9 | 42.4 | 32.2 | 33.8 | 25.4 | |
| 300 | 0.189037 | 44.7 | 37.4 | 37.9 | 28.8 | 30.2 | 22.6 | |
| 250 | 0.215040 | 39.3 | 32.9 | 33.3 | 25.3 | 26.5 | 19.9 | |
