The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

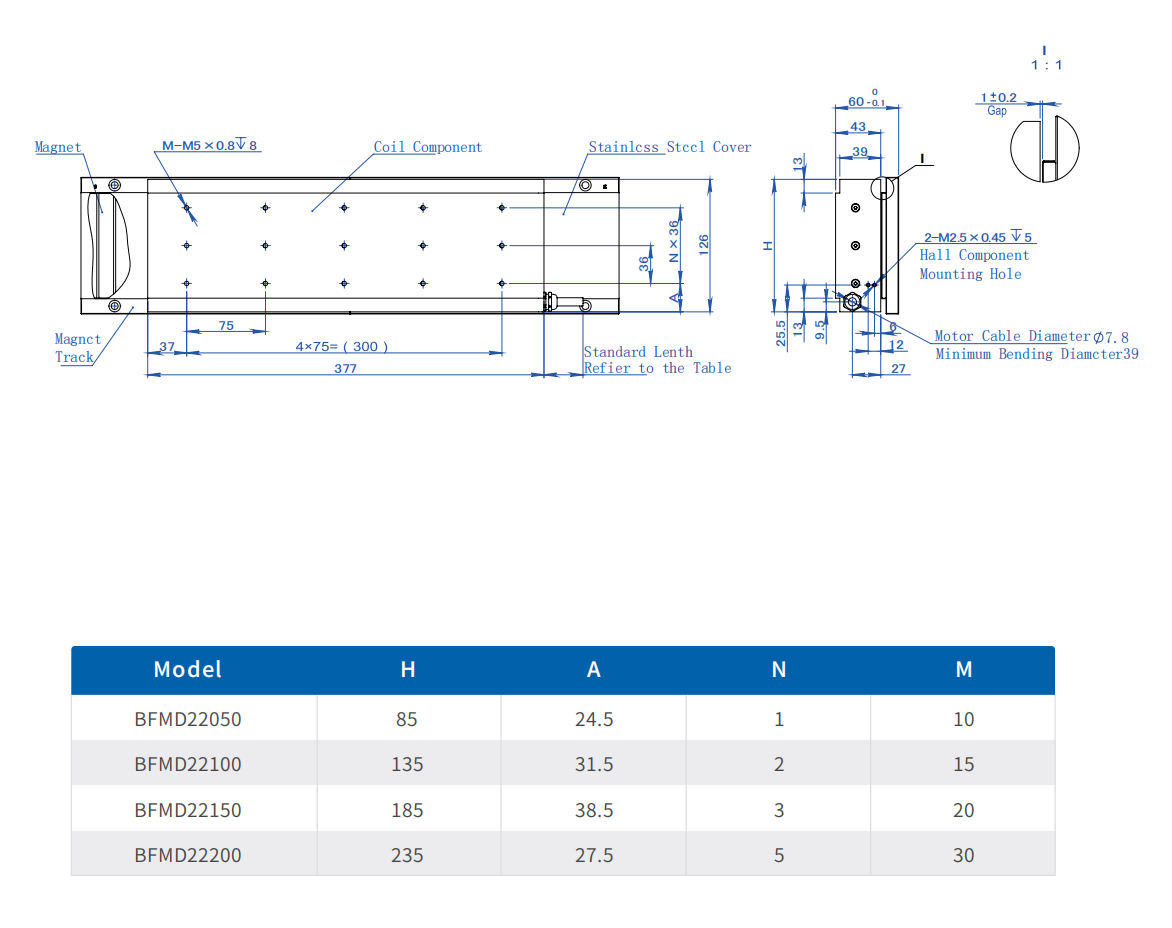

| BFMD22 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMD22050 | BFMD22100 | BFMD22150 | BFMD22200 |
| Peak Force | FP | N | 1430 | 2861 | 4291 | 5722 |
| Continuous Force | FC | N | 660 | 1320 | 1980 | 2640 |
| Motor Constant | Km | N/SQRT (W) | 44.8 | 69.5 | 87.8 | 103 |
| Peak Current | IP | Arms | 28 | 28 | 28 | 28 |
| Continuous Current | IC | Arms | 10 | 10 | 10 | 10 |
| Resistance@25℃ | Rm | Ohms L-L | 1.3 | 2.2 | 3.1 | 4 |
| Inductance | L | mH L-L | 13.4 | 26 | 38.7 | 51.3 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 54 | 108 | 162 | 216 |
| Force Constant | Kf | N/Arms | 66 | 132 | 198 | 264 |
| Electrical Time Constant | Te | ms | 10.1 | 11.8 | 12.5 | 12.9 |
| Electrical Cycle(N to N) | 2t | mm | 32 | 32 | 32 | 32 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 4.9 | 9.8 | 14.6 | 19.7 |
| Coil Mass | MC | kg | 6.9 | 12.5 | 18.1 | 23.7 |
| Track Mass | MW | kg/m | 7.5 | 12.7 | 20.7 | 26.8 |
