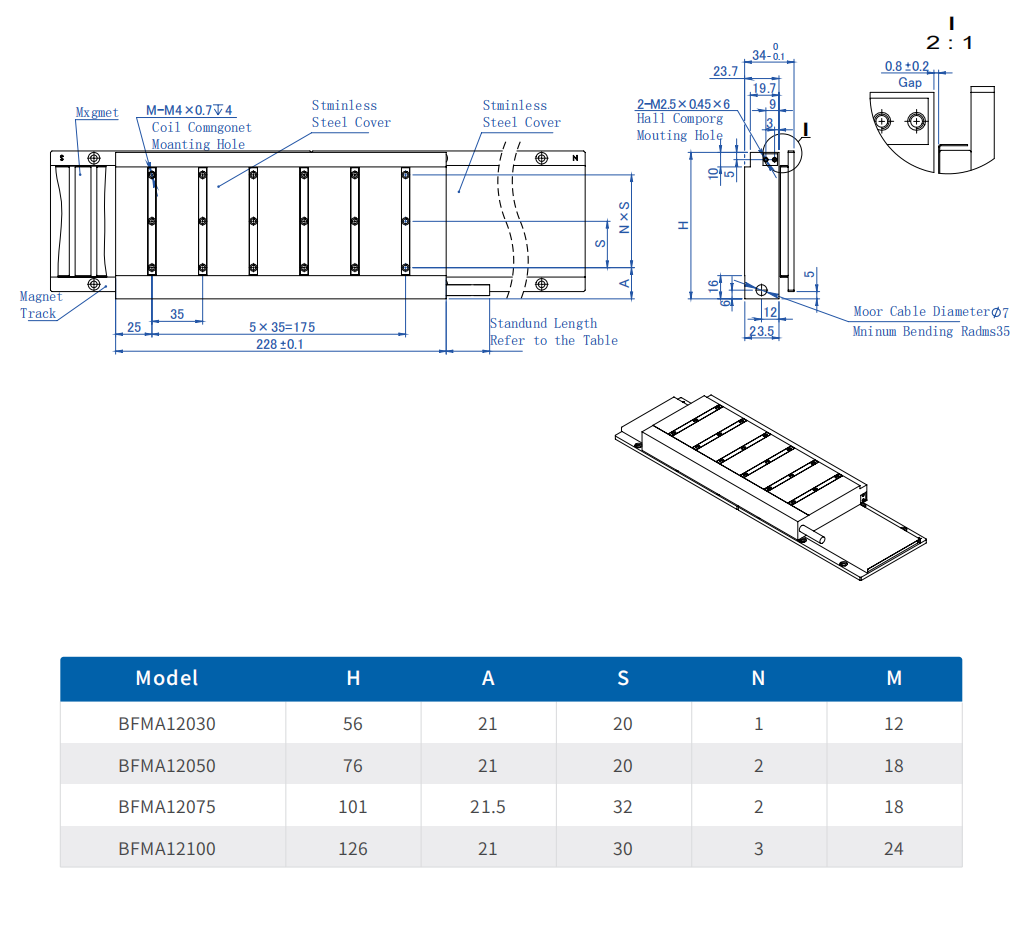

The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux. The iron core design is very cost-effective, requiring only a single row of magnets. The laminated structure and large surface area ensure good heat dissipation. The modular magnetic track allows for an unlimited stroke length.
Download
| BFMA12 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMA12030 | BFMA12050 | BFMA12075 | BFMA12100 |
| Winding type | - | - | C1 | C1 | C2 | C2 |
| Peak Force | Fp | N | 540 | 900 | 1350 | 1800 |
| Continuous Force | Fc | N | 180 | 300 | 455 | 605 |
| Motor Constant | Km | N/SQRT (W) | 18.9 | 27.6 | 35.1 | 40.1 |
| Peak Current | Ip | Arms | 12.6 | 12.6 | 18 | 18 |
| Continuous Current | Ic | Arms | 3.6 | 3.6 | 5.2 | 5.2 |
| Resistance@25°℃ | Rm | Ohms L-L | 4.8 | 6.2 | 4.5 | 5.3 |
| Inductance | L | mH L-L | 18 | 28.9 | 21 | 27 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 41 | 68 | 72 | 96 |
| Force Constant | Kf | N/Ams | 50 | 83 | 88 | 118 |
| Electrical Time Constant | Te | ms | 3.75 | 4.65 | 4.65 | 5 |
| Electrical Cycle(N to N) | 2t | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.9 | 1.5 | 2.2 | 2.9 |
| Coil Mass | Mc | kg | 1.4 | 2.33 | 3.5 | 4.67 |
| Track Mass | Mw | kg/m | 2.5 | 3.8 | 5 | 6.5 |
