DDR motors are torque motors that directly drive the load without any transmission components. DDR motors have a compact structure and high rigidity.
Strong. They generate high torque by using high-energy permanent magnets. At the same time, they are equipped with built-in optical encoders, which make the system have better positioning accuracy.
Higher bit precision and a more dynamic response. The use of high-rigidity crossed roller bearings enhances the mechanical characteristics of the system.
Download

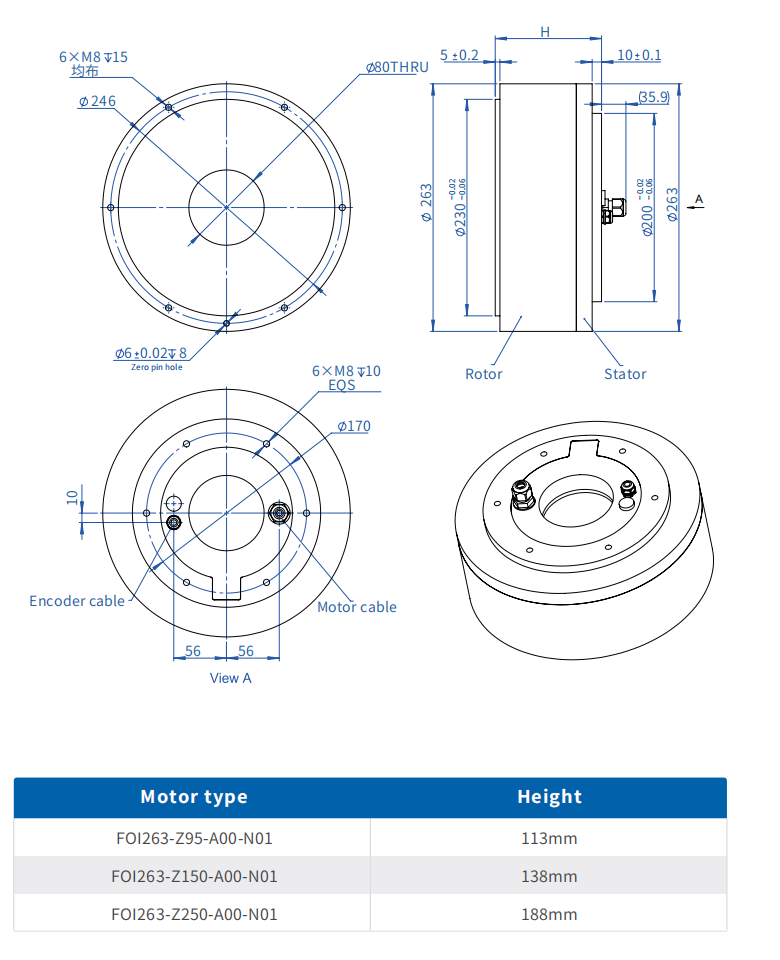

| FOI 263 Series Technical Data | |||||
| Specification | FOI263-Z95-A00-N01 | FOI263-Z150-A00-N01 | FOI263-Z250-A00-N01 | ||
| Rated voltage | V | 220 | 220 | 220 | |
| Peak torque | N.m | 190 | 300 | 500 | |
| Continuous torque | N.m | 95 | 150 | 250 | |
| Maximum velocity | rps | 2.5 | 3 | 1.67 | |
| Continuous velocity | rps | 2 | 2 | 1 | |
| Rotation position | Encoder resolution | pulse/rev | 4194304 | 4194304 | 4194304 |
| Engraved line number | Lines | 16384 | 16384 | 16384 | |
| Absolute accuracy | arc-sec | ±25 | ±25 | ±25 | |
| Repeatability acuracy | arc-sec | ±2.5 | ±2.5 | ±2.5 | |
| Zero point | pulse/rev KVA | 1 | 1 | 1 | |
| Maximum power | KVA | 2.98 | 5.65 | 5.24 | |
| Rated power | Nm/Arms | 1.2 13.4 | 1.89 | 1.6 | |
| Torque constant Back EMF constant | Vp/(krpm) | 21.9 | 35.2 | ||
| 1145.7 | 1872.5 | 3009.6 | |||
| Terminal Resistance | 2 | 3.4 | 4.2 | 6.7 | |
| Terminal Inductance | mH | 10.8 | 13.9 | 22.8 | |
| Continuous current | Arms | 7.1 | 7.1 | 7.1 | |
| Peak current | Arms | 14.2 | 14.2 | 14.2 | |
| Pole pairs | · | 20 | 20 | 20 | |
| Load | Rotor inertia Axial lad(forward) | kg.cm2 | 1300 | 1600 | 2100 |
| Axial load(inversion) | N | 4000 1400 | 4000 1400 | 4000 1400 | |
| radialload | N Nm | 400 | 400 | 400 | |
| Mechanical accuracy | μm | 8 | 8 | 8 | |
| Weight | kg | 23.8 | 35 | 48 | |
