DDR motors are torque motors that directly drive the load without any transmission components. DDR motors have a compact structure and high rigidity.
Strong. They generate high torque by using high-energy permanent magnets. At the same time, they are equipped with built-in optical encoders, making the system more accurate in positioning.
Higher bit precision and a more dynamic response.
Download

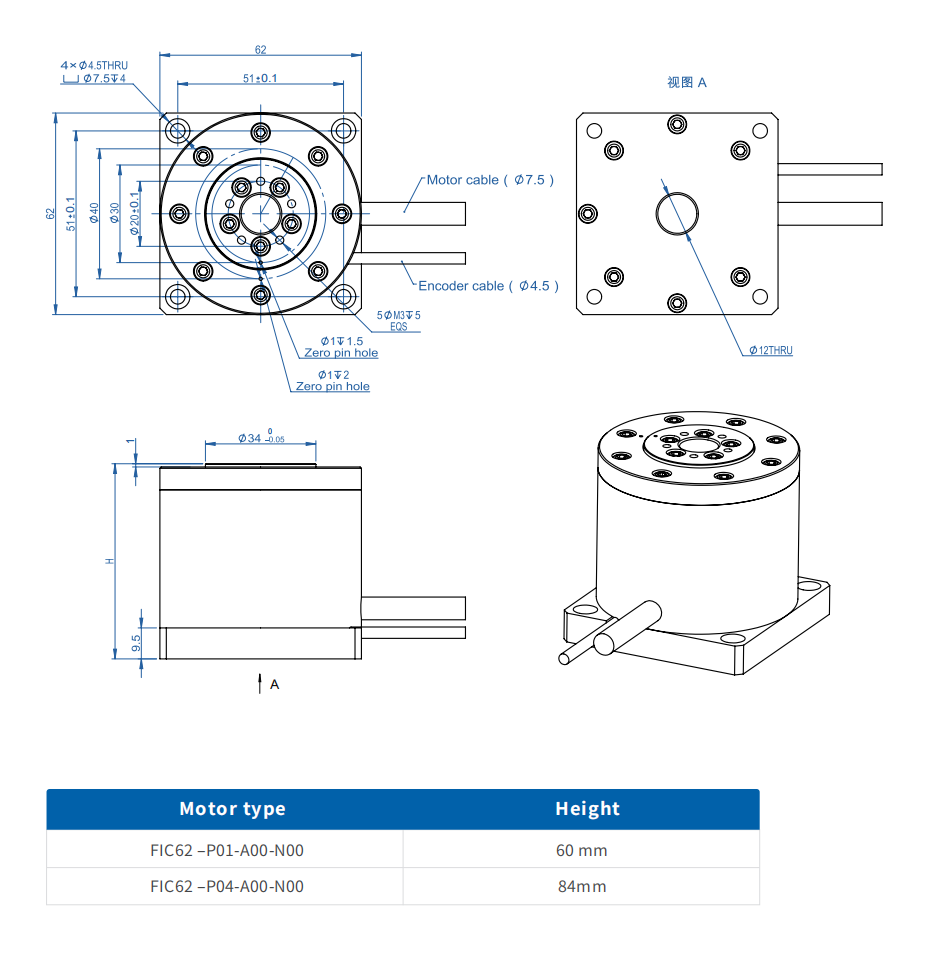

| FIC62 Series Technical Data | ||||
| Specification | FIC62-P01-A00-N00 | FIC62-P04-A00-N00 | ||
| Rated voltage | V | 24,48VDC | 24,48VDC | |
| Peak torque | N.m | 0.42 | 1.2 | |
| Continuous torque | N.m | 0.13 | 0.39 | |
| Maximum velocity | rps | 13 | 13 | |
| Continuous velocity | rps | 10 | 10 | |
| Rotation position | Encoder resolution | pulse/rev | 640000 | 640000 |
| Engraved line number | Lines | 2500 | 2500 | |
| Absolute accuracy | arc-sec | ±50 | ±50 | |
| Repeatability acuracy | arc-sec | ±15 | ±15 | |
| Zero point | pulse/rev | 1 | 1 | |
| Maximum power | KVA | 0.038 | 0.098 | |
| Rated power | KVA | 0.012 | 0.025 | |
| Torque constant | Nm/Arms | 0.07 | 0.2 | |
| Back EMF constant | Vp/(krpm) | 6 | 18 | |
| Terminal Resistance | 2 | 2.8 | 7.84 | |
| Terminal Inductance | mH | 0.7 | 1.96 | |
| Continuous current | Arms | 2 | 2 | |
| Peak current | Arms | 6 | 6 | |
| Pole pairs | - | 4 | 4 | |
| Load | Rotor inertia | kg.cm2 | 0.216 | 0.5 |
| Axial load(forward) | N | 50 | 50 | |
| Axial load(inversion) | N | 40 | 40 | |
| radial load | Nm | 0.3 | 0.3 | |
| Mechanical accuracy | μm | 10 | 10 | |
| Weight | kg | 0.5 | 0.8 | |
