The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

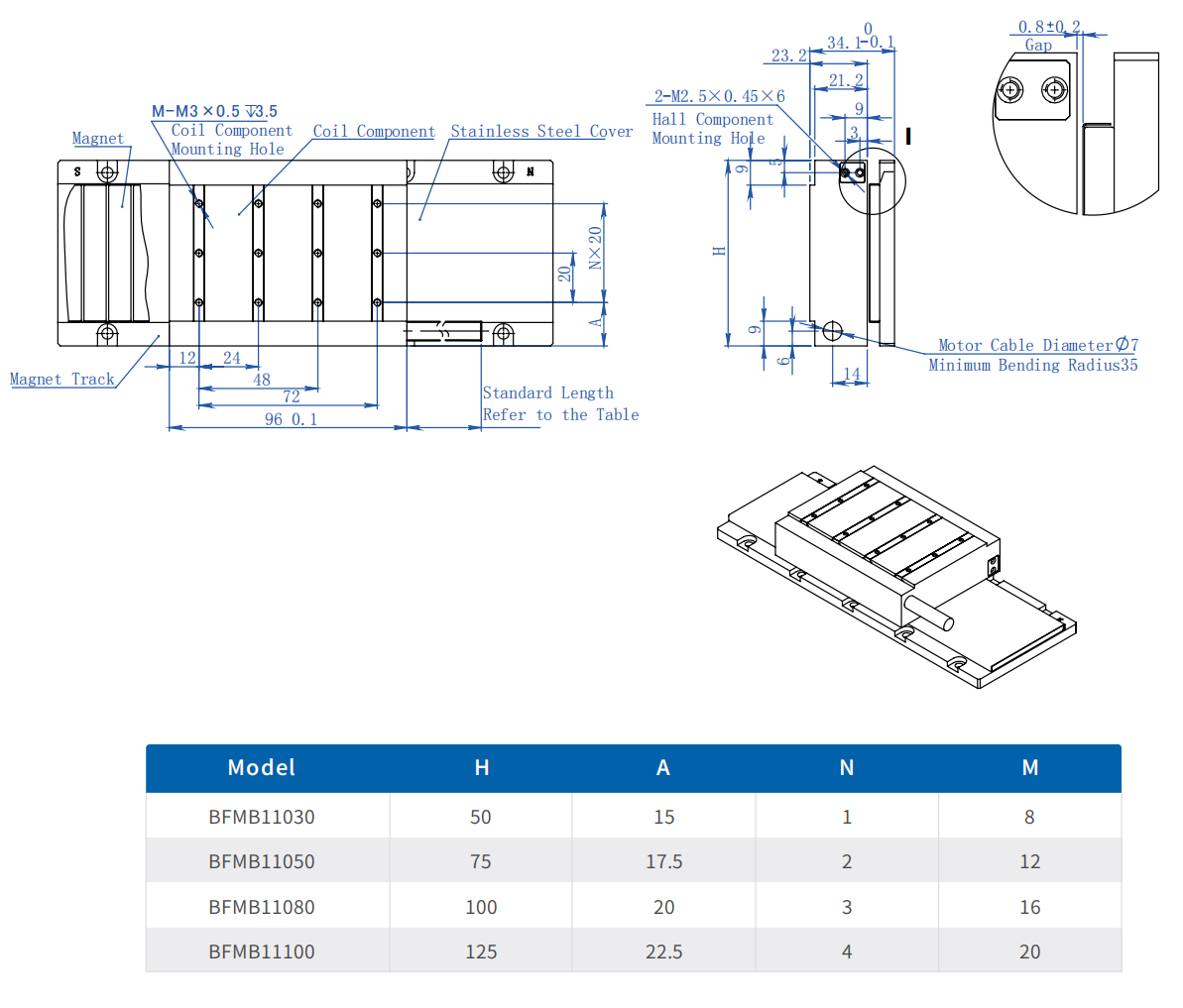

| BFMB11 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMB11030 | BFMB11050 | BFMB11080 | BFMB11100 |
| Peak Force | Fp | N | 183 | 335 | 487 | 640 |
| Continuous Force | Fc | N | 61 | 111 | 162 | 236 |
| Motor Constant | Km | N/SQRT (W) | 9.6 | 14.5 | 18.0 | 21.2 |
| Peak Current | Ip | Arms | 8 | 8 | 8 | 8 |
| Continuous Current | Ic | Arms | 2.6 | 2.6 | 2.6 | 2.6 |
| Resistance@25°℃ | Rm | Ohms L-L | 3.9 | 5.8 | 8 | 9.8 |
| Inductance | L | mH L-L | 16 | 22 | 30 | 38 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 19 | 35 | 51 | 66.5 |
| Force Constant | Kf | N/Arms | 23.3 | 42.9 | 62.5 | 81.5 |
| Electrical Time Constant | Te | ms | 4.1 | 3.79 | 3.75 | 3.88 |
| Electrical Cycle(N to N) | 2T | mm | 20 | 20 | 20 | 20 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.2 | 0.4 | 0.6 | 0.8 |
| Coil Mass | Mc | kg | 0.6 | 0.9 | 1.2 | 1.5 |
| Track Mass | Mw | kg/m | 3.3 | 5 | 7 | 8.8 |
