Compared with iron core motors, the mover has a lighter mass and can achieve high speeds.
It has better dynamic performance in terms of acceleration.
Fixed air gap, easy to align and install
The balancing effect of the double-row magnetic rails offsets the attraction between the magnets, making them easy to install and handle.
Download

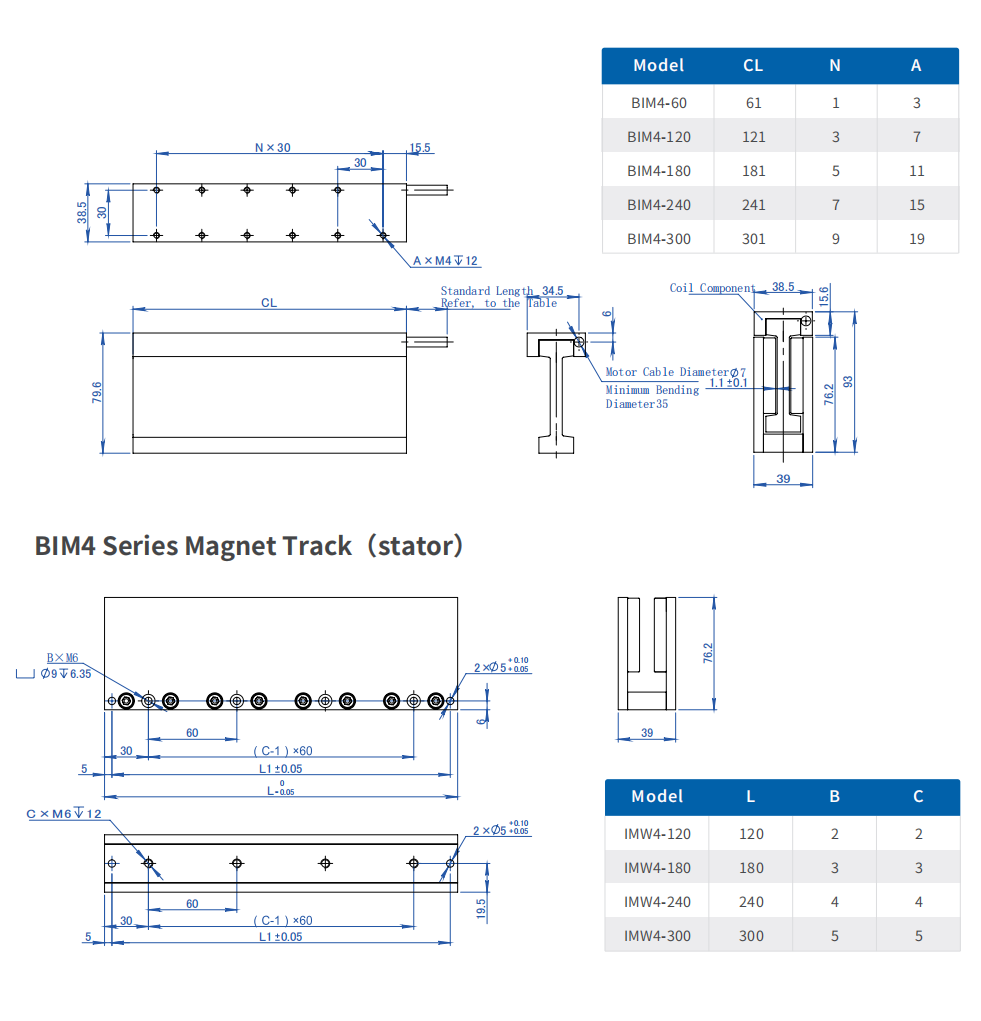

| BIM4 Series Technical Data | |||||||
| Performance Parameters | Symbol | Unit | BIM4-60 | BIM4-120 | BIM4-180 | BIM4-240 | BIM4-300 |
| Peak Force | Fp | N | 310 | 620 | 930 | 1240 | 1550 |
| Continuous Force | Fc | N | 55 | 106 | 165 | 220 | 275 |
| Motor Constant | Km | N/SQRT (W) | 10.2 | 14.0 | 17.7 | 20.6 | 23.1 |
| Peak Current | lp | Arms | 13 | 13 | 13 | 13 | 13 |
| Continuous Current | Ic | Arms | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Resistance@25℃ | Rm | Ohms L-L | 3.7 | 7.1 | 10.9 | 14.4 | 17.8 |
| Inductance | L | mH L-L | 3.3 | 6.3 | 9.4 | 12.2 | 15.2 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 19.5 | 39 | 58.5 | 78 | 97.5 |
| Force Constant | Kf | N/Arms | 23.9 | 47.8 | 71.7 | 95.6 | 119.4 |
| Electrical Time Constant | Te | ms | 0.90 | 0.88 | 0.86 | 0.85 | 0.85 |
| Electrical Cycle(N to N) | 2t | mm | 60 | 60 | 60 | 60 | 60 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0 | 0 | 0 | 0 | 0 |
| Coil Mass | Mc | kg kg/m | 0.32 | 0.59 15 | 0.88 | 1.08 | 1.42 |
| Track Mass | Mw | 15 | |||||
