The irradiation direction and Angle
can be adjusted freely
Diffusing plate can be free
to choose
Metal surface defect detection
Character,barcode recognition

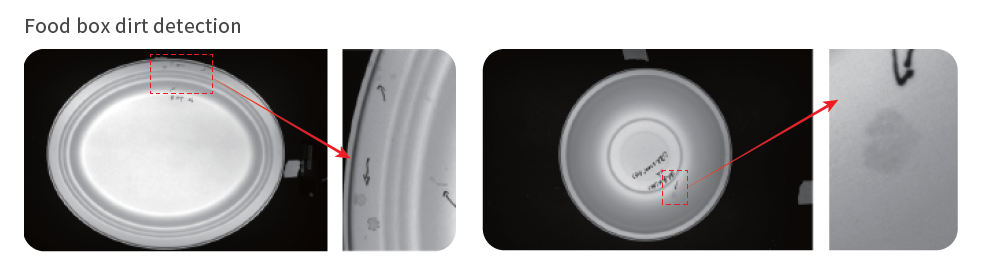

Food packaging detection
Electronic components identifi-
cation and detection
Download
| Product Model | Power (V/W) | Length (mm) | Width (mm) | |
| LT-24V-52L17 | 24V/1.3W | 24V/1W | 52 | 17 |
| LT-24V-62L19 | 24V/2.16W | 24V/2.4W | 62 | 19 |
| LT-24V-80L12 | 24V/0.72W | 24V/0.96W | 80 | 12 |
| LT-24V-80L15 | 24V/1.44W | 24V/1.92W | 80 | 15 |
| LT-24V-80L19 | 24V/2.16W | 24V/2.2W | 80 | 19 |
| LT-24V-102L25 | 24V/3.60W | 24V/3.1W | 102 | 25 |
| LT-TR11035HY | 24V/2.88W | 24V/6.1W | 110 | 35 |
| LT-24V-172L25 | 24V/6.48W | 24V/8.64W | 172 | 25 |
| LT-24V-L82-45L15 | 24V/0.58W | 24V/0.82W | 45 | 15 |
| LT-24V-L83-45L19 | 24V/0.86W | 24V/1.1W | 45 | 19 |
| LT-24V-L84-45L23 | 24V/1.15W | 24V/1.63W | 45 | 23 |
| LT-24V-L85-45L27 | 24V/1.44W | 24V/2.04W | 45 | 27 |
| LT-24V-L86-45L31 | 24V/2.7W | 24V/2.45W | 45 | 31 |
| LT-24V-L83-79L19 | 24V/1.73W | 24V/2.45W | 79 | 19 |
| LT-24V-L84-79L23 | 24V/3.5W | 24V/3W | 79 | 23 |
| LT-24V-L85-79L27 | 24V/2.88W | 24V/3.2W | 79 | 27 |
| LT-24V-L86-79L31 | 24V/3.46W | 24V/4.2W | 79 | 31 |
| LT-24V-L83-113L19 | 24V/2.59W | 24V/3.67W | 113 | 19 |
| LT-24V-L84-113L23 | 24V/3.46W | 24V/4W | 113 | 23 |
| LT-24V-L85-113L27 | 24V/4.32W | 24V/4.4W | 113 | 27 |
| LT-24V-L86-113L31 | 24V/5.18W | 24V/4.4W | 113 | 31 |
| LT-24V-L83-147L19 | 24V/3.46W | 24V/4.90W | 147 | 19 |
| LT-24V-L84-147L23 | 24V/4.61W | 24V/6.53W | 147 | 23 |
| LT-24V-L85-147L27 | 24V/5.76W | 24V/8.16W | 147 | 27 |
| LT-24V-L86-147L31 | 24V/6.91W | 24V/9.79W | 147 | 31 |
| LT-24V-L83-181L19 | 24V/4.32W | 24V/6.12W | 181 | 19 |
| LT-24V-L84-181L23 | 24V/5.76W | 24V/8.16W | 181 | 23 |
| LT-24V-L85-181L27 | 24V/7.20W | 24V/10.20W | 181 | 27 |
| LT-24V-L86-181L31 | 24V/8.64W | 24V/9.1W | 181 | 31 |
| LT-24V-L83-181L19 | 24V/4.32W | 24V/6.12W | 181 | 19 |
| LT-24V-L84-181L23 | 24V/5.76W | 24V/8.16W | 181 | 23 |
| LT-24V-L85-181L27 | 24V/7.20W | 24V/10.20W | 181 | 27 |
| LT-24V-L86-181L31 | 24V/8.64W | 24V/12.24W | 181 | 31 |
| LT-24V-L83-215L19 | 24V/5.18W | 24V/7.34W | 215 | 19 |
| LT-24V-L84-215L23 | 24V/6.91W | 24V/7.6W | 215 | 23 |
| LT-24V-L85-215L27 | 24V/8.64W | 24V/12.24W | 215 | 27 |
| LT-24V-L86-215L31 | 24V/10.37W | 24V/14.69W | 215 | 31 |
| LT-24V-L83-249L19 | 24V/6.05W | 24V/8.57W | 249 | 19 |
| LT-24V-L84-249L23 | 24V/8.06W | 24V/8.5W | 249 | 23 |
| LT-24V-L85-249L27 | 24V/10.08W | 24V/14.28W | 249 | 27 |
| LT-24V-L86-249L31 | 24V/12.10W | 24V/17.14W | 249 | 31 |
| LT-24V-L83-283L19 | 24V/6.91W | 24V/9.79W | 283 | 19 |
| LT-24V-L84-283L23 | 24V/9.12W | 24V/13.06W | 283 | 23 |
| LT-24V-L85-283L27 | 24V/11.52W | 24V/16.32W | 283 | 27 |
| LT-24V-L86-283L31 | 24V/13.82W | 24V/19.58W | 283 | 31 |
| LT-24V-L83-317L19 | 24V/7.78W | 24V/11.02W | 317 | 19 |
| LT-24V-L84-317L23 | 24V/10.37W | 24V/14.69W | 317 | 23 |
| LT-24V-L85-317L27 | 24V/12.96W | 24V/18.36W | 317 | 27 |
| LT-24V-L86-317L31 | 24V/15.55W | 24V/22.03W | 317 | 31 |
| LT-24V-L83-351L19 | 24V/8.64W | 24V/12.24W | 351 | 19 |
| LT-24V-L84-351L23 | 24V/11.52W | 24V/16.32W | 351 | 23 |
| LT-24V-L85-351L27 | 24V/14.40W | 24V/20.40W | 351 | 27 |
| LT-24V-L86-351L31 | 24V/17.28W | 24V/24.48W | 351 | 31 |
| LT-24V-L86-385L31 | 24V/19.01W | 24V/26.93W | 385 | 31 |
| LT-24V-L86-419L31 | 24V/20.74W | 24V/29.38W | 419 | 31 |
| LT-24V-L86-453L31 | 24V/22.46W | 24V/15W | 453 | 31 |
| LT-24V-L86-521L31 | 24V/25.92W | 24V/36.72W | 521 | 31 |
| LT-24V-L86-555L31 | 24V/27.65W | 24V/39.17W | 555 | 31 |
