DDR电机是一种直接驱动载荷且无需任何传输部件的力矩电机。DDR电机结构紧凑，刚性
强。它们通过使用高能永磁体，产生高力矩。同时内置光学编码器，使系统具有更好的定
位精度和更高的动态响应。高刚性交叉滚子轴承的使用，提高了系统的机械特性。
Download

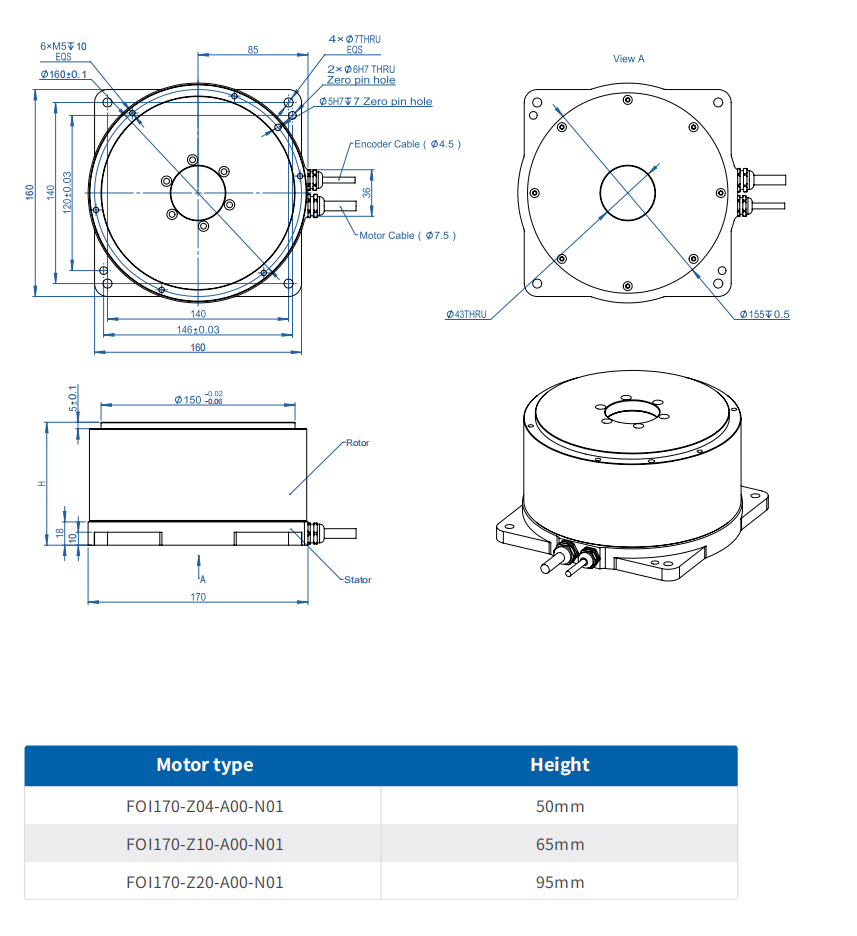

| Joiont FO1170 Series Technical Data | |||||
| Specification | FOI170-Z04-A00-N00 | FOI170-Z10-A00-N00 | FOI170-Z20-A00-N00 | ||
| Rated voltage | V | 220 | 220 | 220 | |
| Peak torque | N.m | 14 | 30 | 60 | |
| Continuous torque | N.m | 4.9 | 10 | 20 | |
| Maximum velocity | rps | 4 | 4 | 4 | |
| Continuous velocity | rps | 3 | 3 | 3 | |
| Rotation position | Encoder resolution | pulse/rev | 2097152 | 2097152 | 2097152 |
| Engraved line number | Lines | 8192 | 8192 | 8192 | |
| Absolute accuracy | arc-sec | ±25 | ±25 | ±25 | |
| Repeatability ccuracy | arc-sec | ±2.5 | ±2.5 | ±2.5 | |
| Zero point | pulse/rev KVA | 1 | 1 | 1 | |
| Maximum power | KVA | 0.35 | 0.7 | 1.4 | |
| Rated power | Nm/Arms | 0.09 | 0.18 | 0.36 | |
| Torque constant | 3.3 | 6.6 | 6.6 | ||
| Back EMF constant | Vp/(krpm) | 284 | 568 | 568 | |
| Terminal Resistance | 2 | 6 | 10.6 | 3.8 | |
| Terminal Inductance | mH | 10 | 18.8 | 8.3 | |
| Continuous current | Arms | 1.5 | 1.5 | 3 | |
| Peak current | Arms | 4.5 | 5 | 10 | |
| Pole pairs | - | 17 | 17 | 17 | |
| Load | Rotor inertia | kg.cm2 | 90 | 125 | 204.5 |
| Axial load(forward) | N | 2000 | 2000 | 2000 | |
| Axial load(inversion) | N | 1400 | 1400 | 1400 | |
| radial load | Nm | 60 | 60 | 60 | |
| Mechanical accuracy | μm | 5 | 5 | 5 | |
| Weight | kg | 5.8 | 8 | 12 | |
