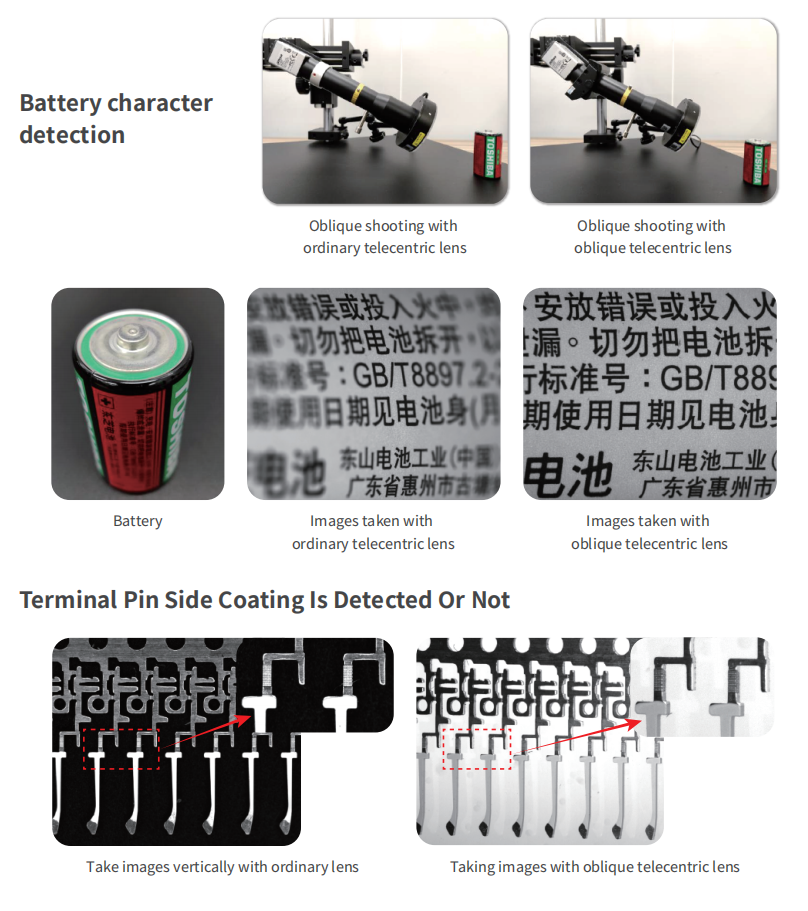

Scheimpflug adjustment,used for inclination measurement
Linear stretching in the direction of inclination can be corrected
Low telecentricity and low distortion
Download
| Model | WD mm |
Detector Type |
Effective F Number |
MTF3 lp/mm |
DOF mm |
TV Distortion % |
Telecentricity ° |
Object-image Distance (mm) |
Mount |
| TCSSM118-01-208 | 208 | 1/1.8＂ | 4.7 | 180 | 37.6 | ≤0.1 | ≤0.1 | 433 | C |
| WD mm |
Camera Lens mount tilt (°) |
Object Tilted Relative to the Horizontal (°) |
Mag.Tilt (°) |
FOV(Detector Long Side Tilt Direction) | OV(DetectorShort SideTiltDirection) | ||||
| 1/1.8'' | 1/2'' | 1/2.5'' | 1/1.8'' | 1/2' | 1/2.5'' | ||||
| 7.16×5.44 mm |
6.40×4.80 mm |
5.70×4.28 mm |
7.16×5.44 mm |
6.40×4.80 mm |
5.70×4.28 mm |
||||
| 208 | 0.0 | 0.0 | 0.100 | 71.60×54.40 | 64.00×48.00 | 57.00×42.80 | 71.60×54.40 | 64.00×48.00 | 57.00×42.80 |
| 1.5 | 15.0 | 0.096 | 74.58×54.40 | 66.67×48.00 | 59.38×42.80 | 71.60×56.67 | 64.00×50.00 | 57.00×44.58 | |
| 3.3 | 30.0 | 0.087 | 82.30×54.40 | 73.56×48.00 | 65.52×42.80 | 71.60×62.53 | 64.00×55.17 | 57.00×49.20 | |
| 5.6 | 45.0 | 0.071 | 100.85×54.40 | 90.14×48.00 | 80.28×42.80 | 71.60×76.62 | 64.00×67.61 | 57.00×60.28 | |
