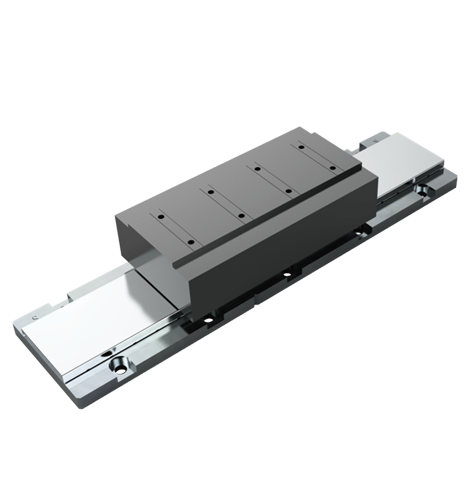

The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

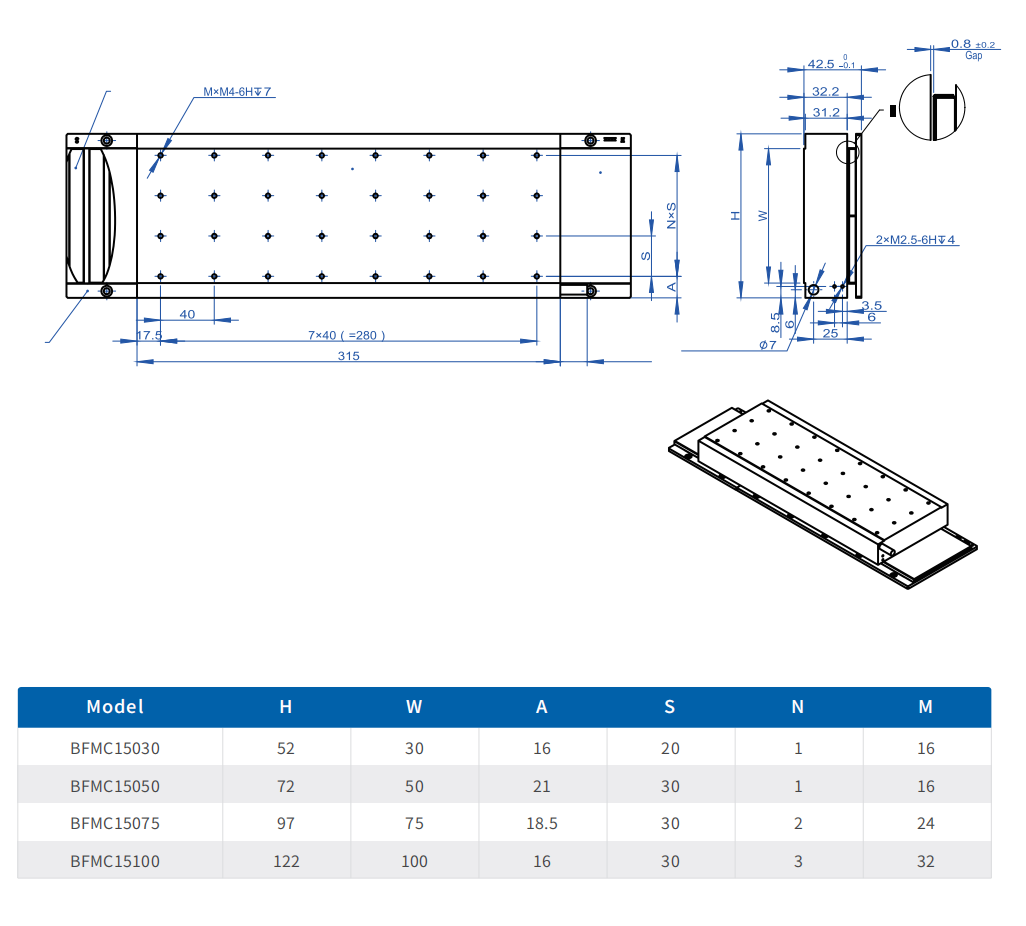

| BFMC15 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMC15030A1C4 | BFMC15050A1C4 | BFMC15075A1D4 | BFMC15100A1D4 |
| Peak Force | Fp | N | 947.4 | 1579 | 2368.5 | 3158 |
| Continuous Force | Fc | N | 315 | 525 | 787.5 | 1050 |
| Motor Constant | Km | N/SQRT (W) | 26.2 | 37 | 42.7 | 57.3 |
| Peak Current | lp | Arms | 15 | 45 | 30 | 30 |
| Continuous Current | lc | Arms | 4 | 4 | 8 | 8 |
| Resistance@25℃ | Rm | Ohms L-L | 6 | 8.5 | 2.9 | 3.5 |
| Inductance | L | mH L-L | 40 | 60 | 21.1 | 27.5 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 64.6 | 107.6 | 80.6 | 107.5 |
| Force Constant | Kf | N/Arms | 79 | 131.6 | 98.8 | 131.7 |
| Electrical Time Constant | Te | ms | 6.7 | 7.1 | 7.3 | 7.9 |
| Electrical Cycle(N to N) | 2T | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 1.4 | 2.3 | 3.5 | 4.7 |
| Coil Mass | Mc | kg | 2.3 | 3.8 | 5.6 | 7.5 |
| Track Mass | Mw | kg/m | 2.5 | 3.75 | 5 | 6.5 |
