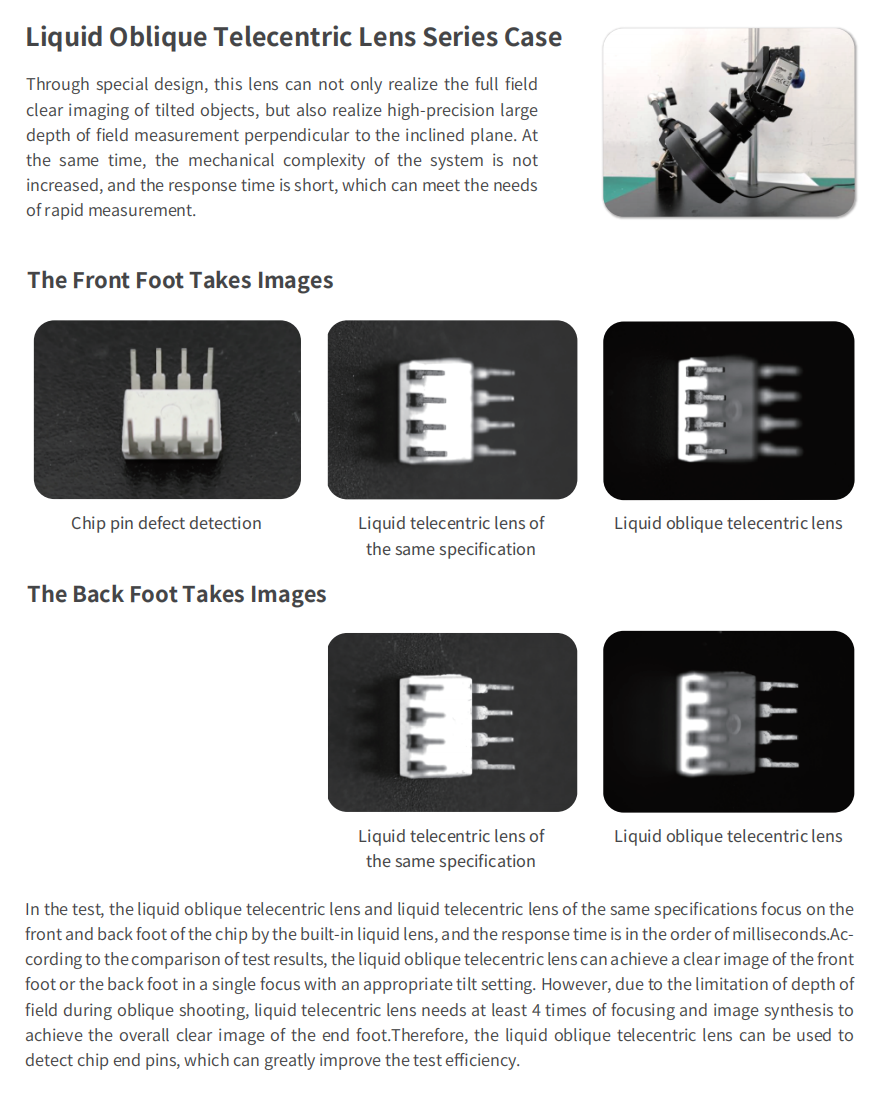

Scheimpflug adjustment,used for inclination measurement
Linear stretching in the direction of inclination can be corrected
Fast focus in milliseconds
Focus without mechanical movement
Download
| Model | WD mm |
Detector Type |
Effective F Number |
DOF μm |
TV Distortion % |
Telecentricity ° |
Object-image Distance(mm) |
Mount |
| TCS-SMLP1-05-110 | 106-122 | 1" | 7.2 | 7.8 | ≤0.1 | ≤0.1 | 261.5-277.5 | C |
| TCS-SMLP23-036-115 | 107-124 | 2/3" | 4.5 | 8.8 | ≤0.1 | ≤0.1 | 253.2-270.2 | C |
| WD mm |
Camera & Lens mounttilt (°) |
物体相对 镜头倾斜 (°) |
倾斜方向 放大倍率 (°) |
FOV(Detector Long Side Tilt Direction) | FOV(Detector Short Side Tilt Direction) | ||||
| 1" | 2/3" | 1/1.8" | 1" | 2/3" | 1/1.8" | ||||
| 13.13*8.76 mm |
8.45*7.07 mm |
7.16*5.44 mm |
13.13*8.76 mm |
8.45*7.07 mm |
7.16*5.44 mm |
||||
| 106~122 | 0.0 | 0.0 | 0.50 | 26.16×17.45 | 16.83×14.08 | 14.26×10.84 | 26.16×17.45 | 16.83×14.08 | 14.26×10.84 |
| 5.0 | 10.0 | 0.496 | 26.47×17.45 | 17.04×14.08 | 14.44×10.84 | 26.16×17.66 | 16.83×14.25 | 14.26×10.97 | |
| 10.0 | 20.0 | 0.479 | 27.41×17.45 | 17.64×14.08 | 14.95×10.84 | 26.16×18.29 | 16.83×14.76 | 14.26×11.36 | |
| 15.3 | 30.0 | 0.451 | 29.11×17.45 | 18.74×14.08 | 15.88×10.84 | 26.16×19.42 | 16.83×15.68 | 14.26×12.06 | |
| WD mm |
Camera & Lens mounttilt (°) |
物体相对 镜头倾斜 (°) |
倾斜方向 放大倍率 (°) |
FOV(Detector Long Side Tilt Direction) | FOV(Detector Short Side Tilt Direction) | ||||
| 1" | 2/3" | 1/1.8" | 1" | 2/3" | 1/1.8" | ||||
| 8.45*7.07 mm |
7.16*5.44 mm |
6.40*4.80 mm |
8.45*7.07 mm |
7.16*5.44 mm |
6.40*4.80 mm |
||||
| 107~124 | 0.0 | 0.0 | 0.362 | 23.34×19.53 | 19.78×15.03 | 17.68×13.26 | 23.34×19.53 | 19.78×15.03 | 17.68×13.26 |
| 5.5 | 15.0 | 0.351 | 24.07×19.53 | 20.40×15.03 | 18.23×13.26 | 23.34×20.14 | 19.78×15.50 | 17.68×13.68 | |
| 11.7 | 30.0 | 0.320 | 26.41×19.53 | 22.38×15.03 | 20.00×13.26 | 23.34×22.09 | 19.78×17.00 | 17.68×15.00 | |
| 19.6 | 45.0 | 0.272 | 31.07×19.53 | 26.32×15.03 | 23.53×13.26 | 23.34×25.99 | 19.78×20.00 | 17.68×17.65 | |
