With iris diaphragm,the depth of field can be changed according to needsThe top and the lateral views show the same magnification The top and side images have the same magnification

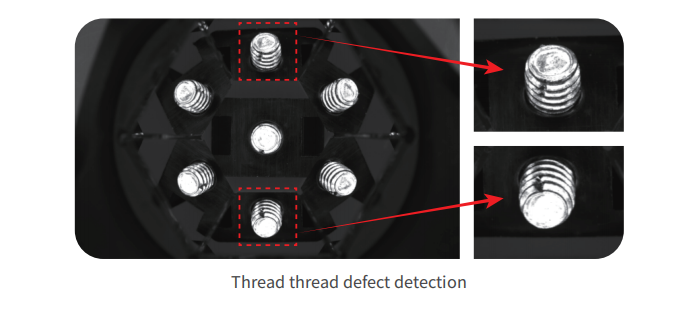

Can detect small components with a diameter of 1-10mm
Download
| Model |
WD mm |
Resolution μm |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mm×mm |
Illuminator Voltage V，DC |
Illuminator Power w |
Object Field of View Diameter x Depth（mm×mm）13.11×9.83mm |
||
| Min | Typical | Max | |||||||||
| TCSLP-MP1-12 | 1.5~2.0 | 12.4 | 6.5 | 450~650 | C | Φ130×269.42 | 24 | 10 | 1.0×12.0 | 6.0×6.0 | 12.0×1.0 |
