The moving coil has no iron core, so there is no attraction between the moving coil and the stator magnetic track.
The coreless rotor has no cogging effect and runs smoothly.
Compared with iron core motors, the mover has a lighter mass, which can achieve high acceleration and has better dynamic performance.
The balancing effect of the double-row magnetic rails offsets the attraction between the magnets, making them easy to install and handle.
Download

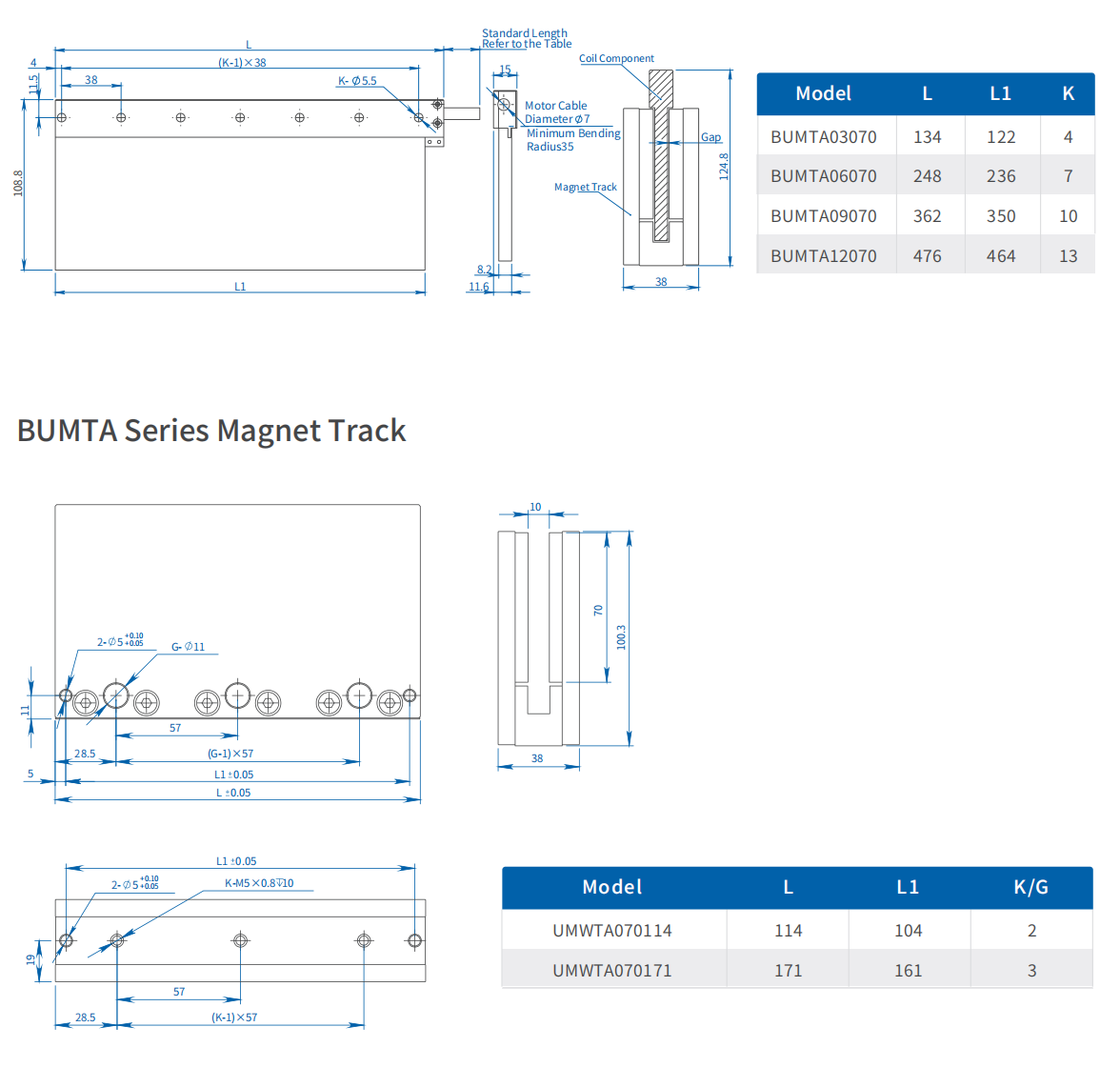

| BUMTA Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BUMTA03070 | BUMTA06070 | BUMTA09070 | BUMTA12070 |
| Peak Force | Fp | N | 600 | 1210 | 1810 | 2418 |
| Continuous Force | Fc | N | 120 | 240 | 360 | 480 |
| Motor Constant | Km | N/SQRT (W) | 14.4 | 20.4 | 25.0 | 29.1 |
| Peak Current | Ip | Arms | 5.8 | 11.5 | 17.2 | 23.0 |
| Continuous Current | lc | Arms | 1.2 | 2.3 | 3.5 | 4.7 |
| Resistance@25℃ | Rm | Ohms L-L | 35.8 | 17.9 | 11.9 | 8.9 |
| Inductance | L | mH L-L | 42 | 21 | 14 | 10 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 87 | 87 | 87 | 87 |
| Force Constant | Kf | N/Arms | 107 | 107 | 107 | 107 |
| Electrical Time Constant | Te | ms | 1.17 | 1.17 | 1.17 | 1.17 |
| Electrical Cycle(N to N) | 2t | mm | 57 | 57 | 57 | 57 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0 | 0 | 0 | 0 |
| Coil Mass | Mc | kg | 0.55 | 0.95 | 1.35 | 1.75 |
| Track Mass | Mw | kg/m | 21 | 21 | 21 | 21 |
