The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

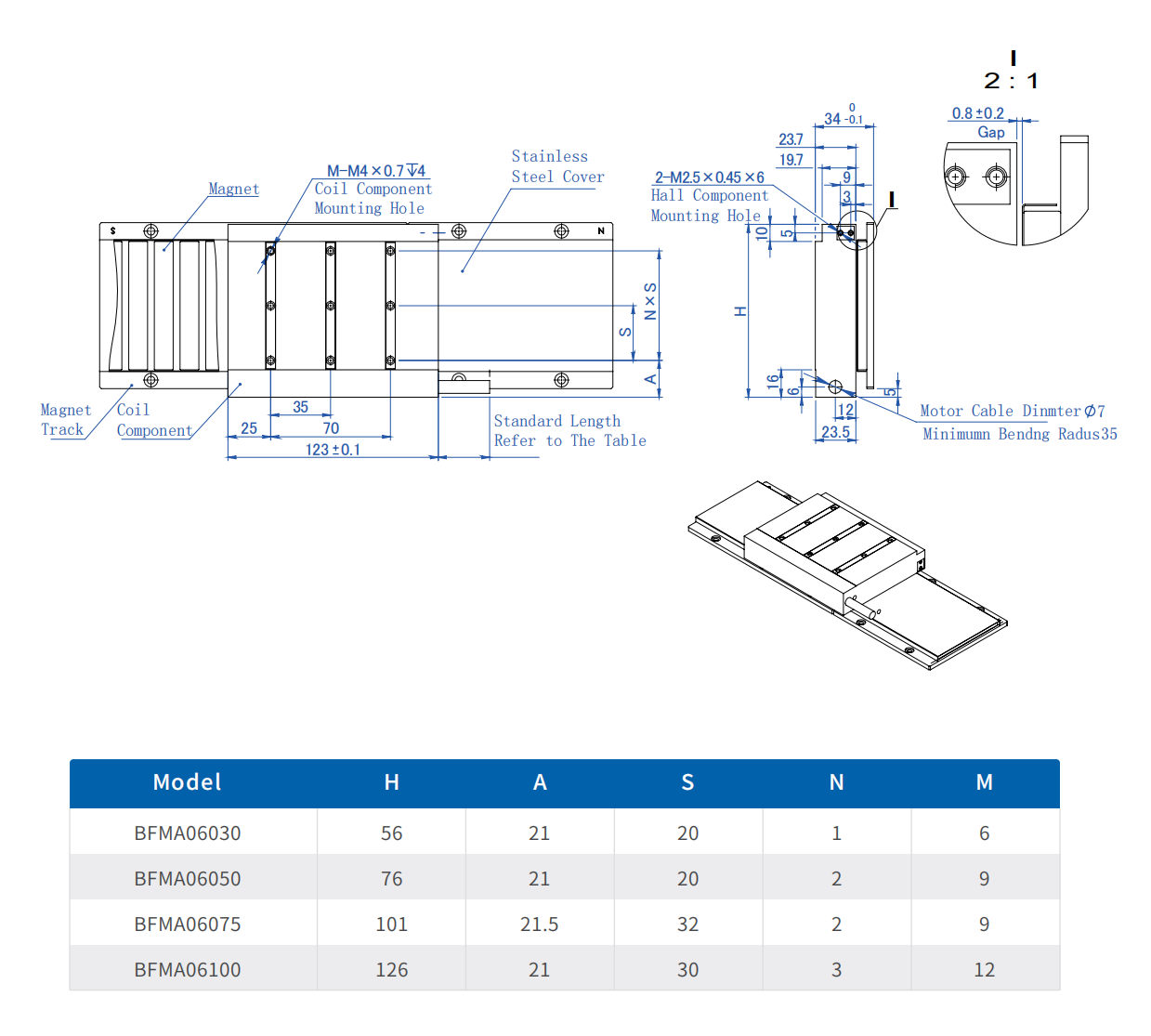

| BFMA06 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMA06030 | BFMA06050 | BFMA06075 | BFMA06100 |
| Winding type | - | - | C1 | C1 | C2 | C2 |
| Peak Force | Fp | N | 270 | 450 | 674 | 900 |
| Continuous Force | Fc | N | 105 | 174 | 264 | 354 |
| Motor Constant | Km | N/SQRT (W) | 13.3 | 19.5 | 24.8 | 28.3 |
| Peak Current | Ilp | Arms | 6.3 | 6.3 | 9 | 9 |
| Continuous Current | Ic | Arms | 2.1 | 2.1 | 3 | 3 |
| Resistance@25℃ | Rm | Ohms L-L | 9.6 | 12.5 | 9 | 10.6 |
| Inductance | L | mH L-L | 36 | 57.9 | 42 | 54 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 41 | 68 | 72 | 96 |
| Force Constant | Kf | N/Arms | 50 | 83 | 88 | 118 |
| Electrical Time Constant | Te | ms | 3.75 | 4.65 | 4.65 | 5 |
| Electrical Cycle(N to N) | 2t | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.4 | 0.7 | 1.1 | 1.5 |
| Coil Mass | Mc | kg | 0.7 | 1.17 | 1.75 | 2.33 |
| Track Mass | Mw | kg/m | 2.5 | 3.8 | 5 | 6.5 |
