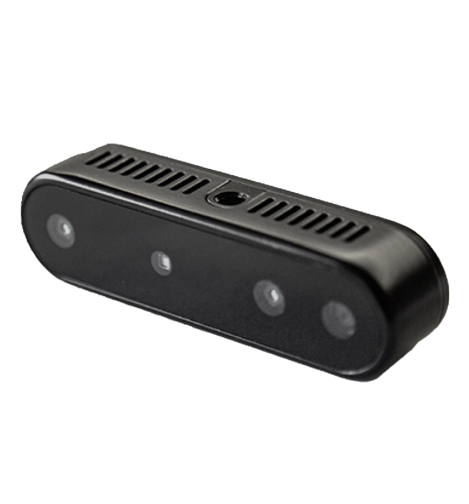

The DREAMSIGHT series binocular structured light cameras adopt self-developed active binocular vision technology, obtaining more depth details and stronger environmental adaptability thantraditional binocular vision. The data information obtained can help achieve automation and intelligence in multiple fields such as robot industry, business and consumer.
Download
| Depth | electrical | interface | Physics |
| Highest resolution | power supply | USB Type-C | Operating temperature |
| 640*400@30fps/20fps/15fps | 5V | 6Pin | -10°℃~60°℃ |
| colorful | Working power | - | Store temperature |
| 1280*720@15fps | <3w | - | -20℃～80°℃ |
| 640*400@30fps/20fps/15fps | Peak power | - | - |
| Support RGB-D synchronous alignment | <5W | - | - |
| Size | measurement | Output data | software |
| Length * Width * Height | Baseline length | Point cloud map | Operating system support |
| 89.0x25.0x20.6mm | 50 mm | Depth map | Linux/Windows/Arm |
| weight | Ranging range | IR | SDK |
| 63.11g | 0.2m - 10m | RGB | MetaSense |
| - | FOV(H/V): 80.5**55.2° | - | API |
| - | measurement accuracy | - | C/C++ |
| - | 1%@1m | - | - |
| - | 2%@2m | - | - |
