Fast focus in milliseconds Focus without mechanical movement With temperature compensation function High resolution,Large depth of field Excellent telecentricity,Ultra low distortion Suitable for high-end inspection and precision measurement
Designed specifically for high-end detection and precise measurement
Download
| Model |
Mag. |
WD mm |
Detector Type |
Effective F Number |
Resolution μm |
TV Distortion % | Telecentricity |
Mount |
Dimensions mm×mm |
FOV mm×mm |

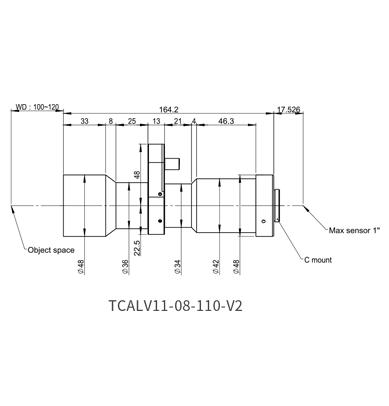

| TCALV11-08-110-V2 | 0.8 | 100-120 | 1.1" | 14 | 8.9 | ≤0.1 | ≤0.1 | C | Φ48×164.2 | 17.63×12.88(1.1") |
| TCALV1-0395-118 | 0.395 | 110-130 | 1" | 8 | 11 | ≤0.1 | ≤0.1 | C | Φ60×146 | 30.38×25.32(1") |
| TCPLV1-05-110 | 0.5 | 116-128 | 1" | 9.2 | 8.8 | ≤0.1 | ≤0.1 | C | Φ48×137.8 | 24.00×20.0(12") |
| TCPLV23-1.0-110-B | 1 | 102-118 | 2/3" | 14.4 | 5.5 | ≤0.1 | ≤0.1 | C | Φ38.5×129.2 | 8.45×7.07(2/3") |
