A single camera can simultaneously measure the top surface and 360 external side image of the measured object Side viewing Angle up to 25 The image is continuous without stitching

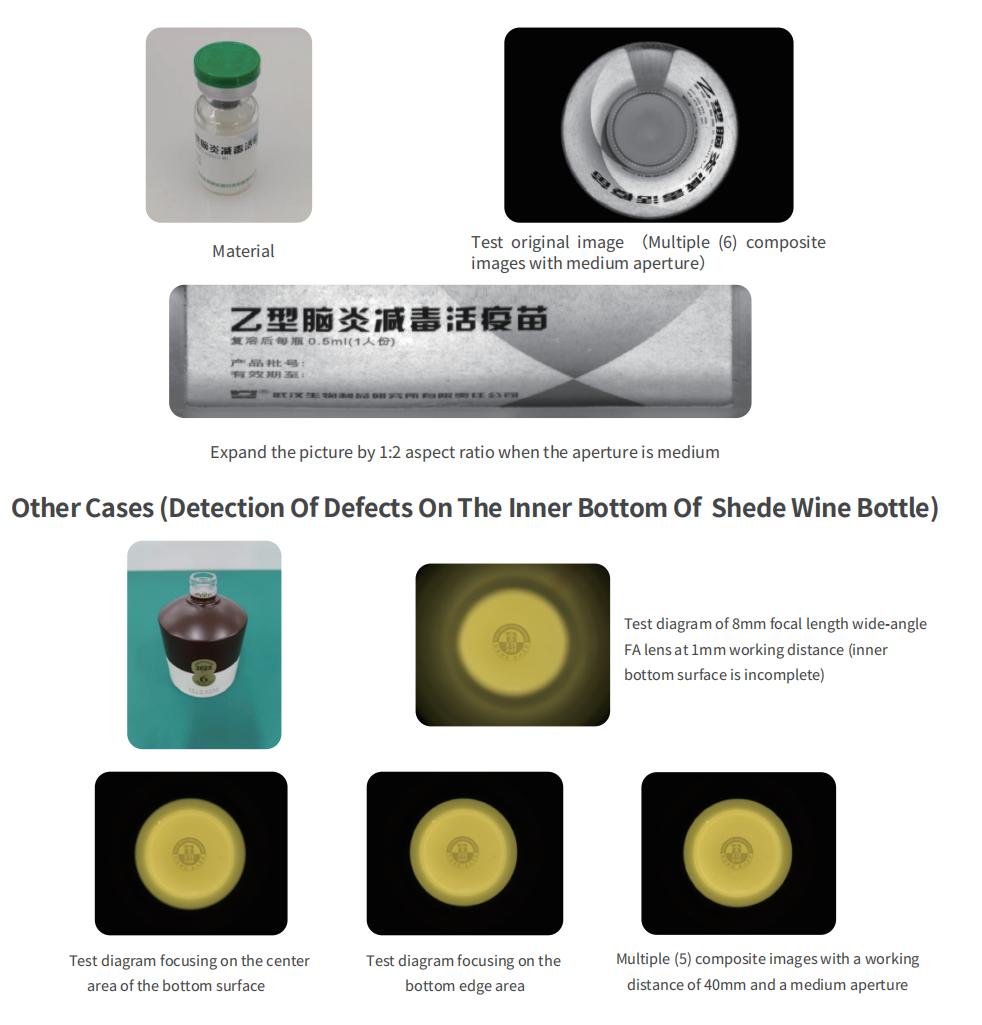

在长工作距离时具有测内壁镜头的功能，特别适用于细小瓶口的 瓶体内底面的检测
Download
| Model | WD mm | MTF30 |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mm×mm |
Object Field of View Diameter x Depth（mmxmm） 1/2.5” 5.70*4.28 |
||
| Min | Typical | Max | |||||||
| TCSPHP125-1232 1~30 | 1~30 | 90 | 8.3 | 450-650 | C 1 | Φ70×283.1 | 5.00×5.00 | 15.0×25.00 | 35.00×5.00 |
| Field of View Selection Table | ||||||||||||
|
Djameter mm |
Height mm |
WD mm |
Height mm | WD mm | Height mm | WD mm | Height mm | WD mm | Height mm | WD mm | Height mm | WD mm |
| 5 | 5 | 28 | 10 | 23 | 15 | 18 | 20 | 13 | 25 | 8 | 30 | 3 |
| 7.5 | 5 | 25.5 | 10 | 20.5 | 15 | 15.5 | 20 | 10.5 | 25 | 5.5 | 30 | 0.5 |
| 10 | 5 | 28 | 10 | 23 | 15 | 18 | 20 | 13 | 25 | 8 | 30 | 3 |
| 15 | 5 | 23 | 10 | 18 | 15 | 13 | 20 | 8 | 25 | 3 | ||
| 20 | 5 | 18 | 10 | 13 | 15 | 8 | 20 | 3 | ||||
| 25 | 5 | 13 | 10 | 8 | 15 | 3 | ||||||
| 30 | 5 | 8 | 10 | 3 | ||||||||
| 35 | 5 | 3 | ||||||||||
