BFMA series iron-core motors are used,which have lower cogging force
The maximum acceleration can up to 60 m/s2,the maximum speed can
up to 2m/s
The absolute precision is +0.01mm and repeat precision is 0.005mm
Download
Repeatability
±0.005mmacceleration
6gMaximum speed

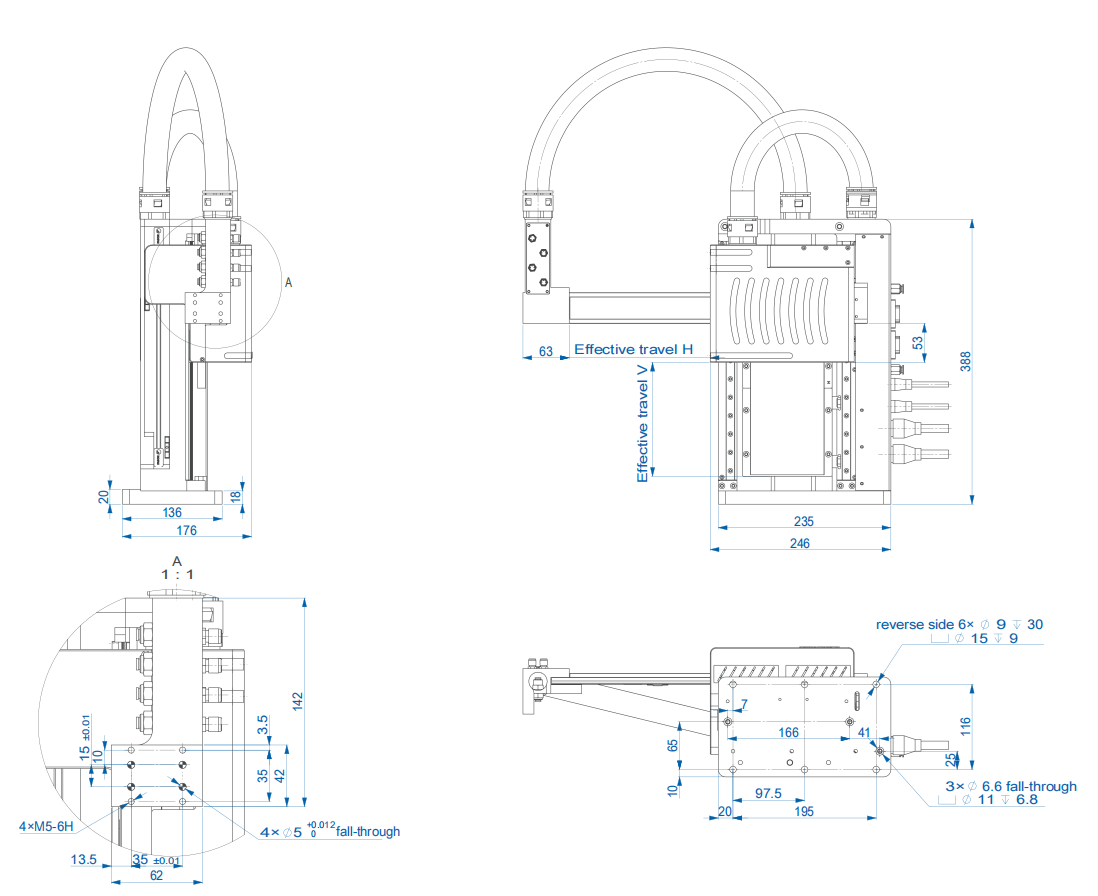

2m/s| Type | Stroke of V axis mm | Stroke of H axis mm | Acceleration g | Velocity m/s | Max. load kg |
| HPP-V100-H100 | 100 | 100 | 4 | 2 | 3 |
| HPP-V100-H160 | 160 | 4 | 2 | 3 | |
| HPP-V100-H200 | 200 | 4 | 2 | 3 | |
| HPP-V100-H270 | 270 | 4 | 2 | 3 | |
| HPP-V100-H320 | 320 | 4 | 2 | 3 | |
| HPP-V150-H100 | 150 | 100 | 4 | 2 | 3 |
| HPP-V150-H160 | 160 | 4 | 2 | 3 | |
| HPP-V150-H200 | 200 | 4 | 2 | 3 | |
| HPP-V150-H270 | 270 | 4 | 2 | 3 | |
| HPP-V150-H320 | 320 | 4 | 2 | 3 |
