The excellent working range, advanced servo control technology and extremely rigid arm greatly shorten the working cycle while ensuring extremely high output.
Adopting the LIKEPRECISION technology, the RV reducer (Rotate Vector Reducer) for joint parts achieves higher precision.
Even in high-speed operation mode, robots can fully leverage their advantages.
Download
Load
25kgArm length
1830mmRepeatability

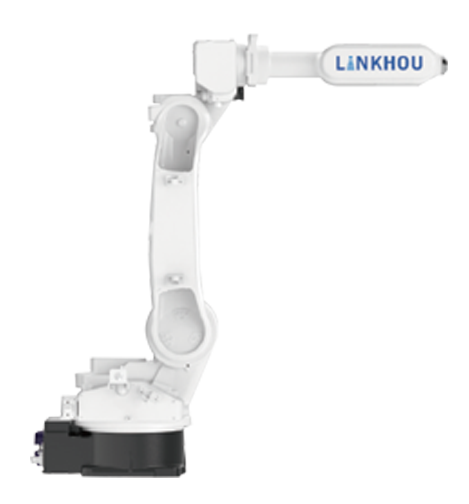

±0.06mm| Product model | LR25E-R1830 | |
| Installation method | Ground, bracket , inverted | |
| Degree of freedom of motion | 6 | |
| Maximum range of motion | 1830mm | |
| Range of motion | Joint 1 | ±170° |
| Joint 2 | +100°/-157° | |
| Joint 3 | +98°/-76° | |
| Joint 4 | ±180° | |
| Joint 5 | +125°/-125° | |
| Joint 6 | ±720° | |
| Speed of movement | Joint 1 | 170°/s |
| Joint 2 | 170°/s | |
| Joint 3 | 170°/s | |
| Joint 4 | 350°/s | |
| Joint 5 | 230°/s | |
| Joint 6 | 230°/s | |
| Maximum torque | Joint 4 | 42N · m |
| Joint 5 | 42N · m | |
| Joint 6 | 42N · m | |
| Maximum moment of inertia | Joint 4 | 1.26kg·m2 |
| Joint 5 | 1.26kg·m2 | |
| Joint 6 | 0.49kg·m2 | |
| Load | 25Kg | |
| Robot weight | 227Kg | |
| Repeatability | ±0.06mm | |
| working environment | 0-45℃，95%RH | |
| Degree of protection | IP 65 | |
| Function | moving, assembling, grinding, polishing, deburring | |
