The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

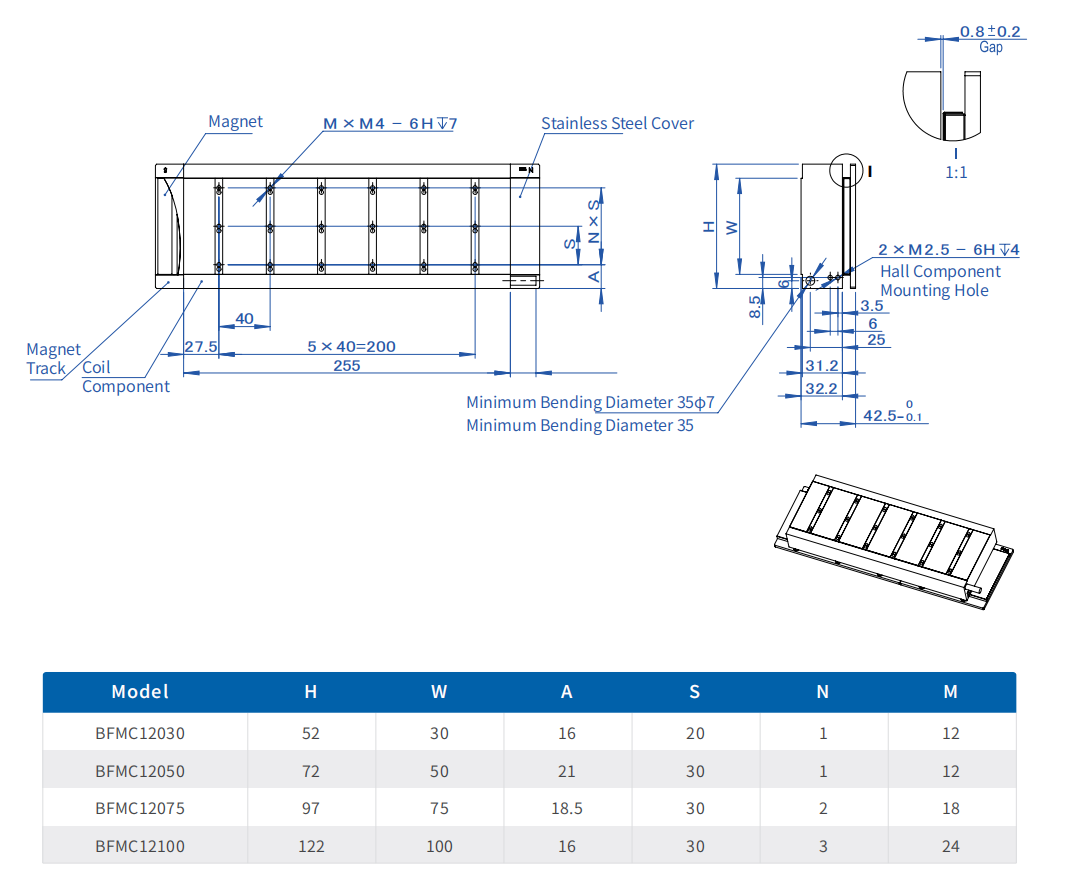

| BFMC12 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMC12030 | BFMC12050 D | BFMC12075 | BFMC12100 |
| Peak Force | Fp | N | 758 | 1263 | 1895 | 2526 |
| Continuous Force | Fc | N | 250 | 420 | 630 | 840 |
| Motor Constant | Km | N/SQRT (W) | 20.8 | 29.6 | 39.6 | 49.5 |
| Peak Current | IP | Arms | 30 | 30 | 30 | 30 |
| Continuous Current | Ic | Arms | 8 | 8 | 8 | 8 |
| Resistance@25℃ | Rm | Ohms L-L | 1.5 | 2.1 | 2.6 | 3 |
| Inductance | L | mH L-L | 6.9 | 11.5 | 16.5 | 22 |
| Back EMF Constant | Ke | Vvpeak/m/s L-L | 25.8 | 43 | 64.5 | 86 |
| Force Constant | Kf | N/Arms | 31.3 | 52.5 | 79 | 105 |
| Electrical Time Constant | Te | ms | 4.6 | 5.5 | 6.3 | 7.3 |
| Electrical Cycle(N to N) | 2t | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 1.2 | 1.9 | 2.8 | 3.7 |
| Coil Mass | Mc | kg | 2.3 | 3.5 | 4.5 | 5.9 |
| Track Mass | Mw | kg/m | 2.5 | 3.8 | 5 | 6.5 |
