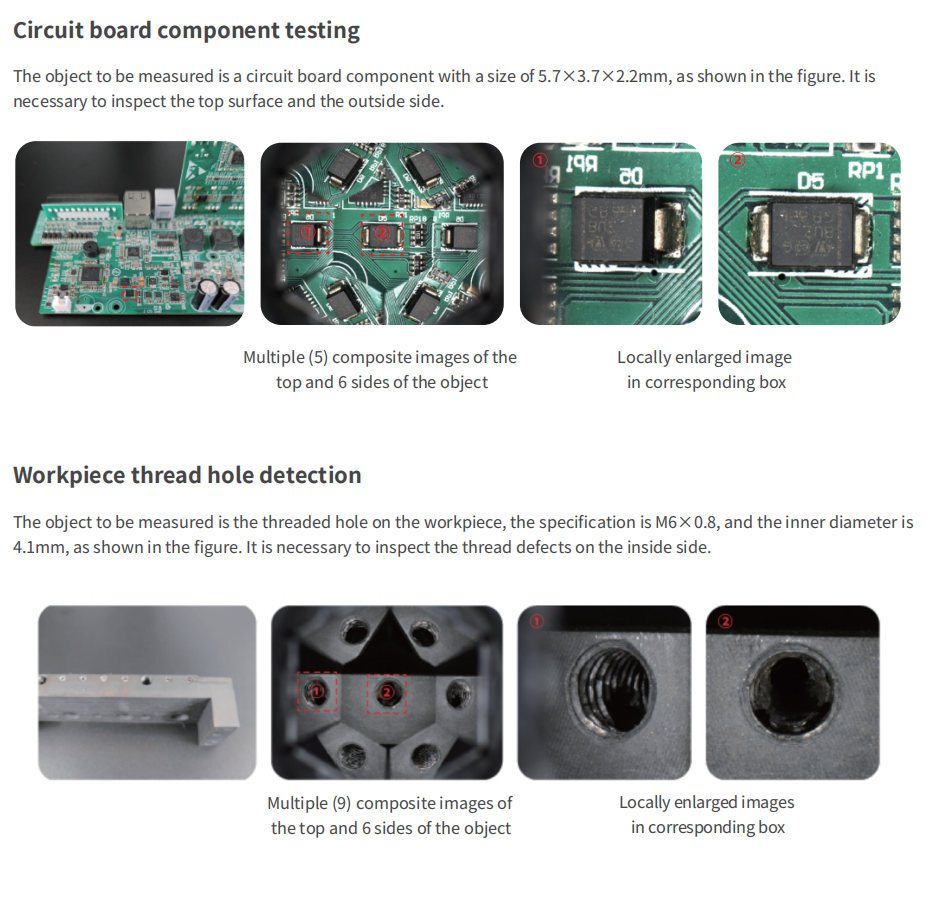

A single camera obtains the top surface of the object and 6 symmetrical side images, which can completely cover the side of the object
Small parts with diameters from 1 to 12mm can be detected
Download
| Model | WD mm |
Resolution μm |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mm×mm |
Illuminator Voltage V, DC |
Illuminator Power |
Object Field of View Diameter x Depth (mm x mm) 13.11×9.83mm |
||
| Min | Type | Max | |||||||||
| TCSLP-MP1-12 | 1.5~2.0 | 12.4 | 6.5 | 450-650 | C | Φ130×269.4 | 24 | 10 | 1.0×12.0 | 6.0x6.0 | 12.0×1.0 |
