Design of parallel light path,high parallelism of emitted light Uniform illumination and high stability Eliminate border effects and improve the edge contour contrast of the tested product

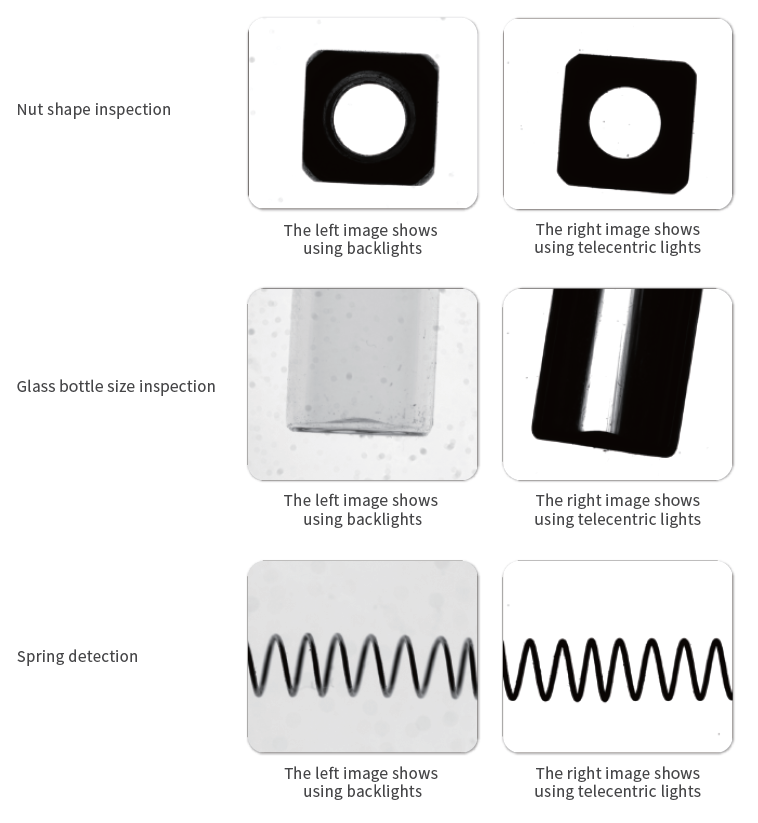

Detection of contours of different flat objects Inspection of glass surface defects Rotor edge burr detection
Download
| Product Model | Power(V/W) | Diameter (mm) | Length (mm) | Beam diameter (mm) | WD (mm) | |
| R | B/G/W | |||||
| TCAL-28-3W | 6V/4.2W | 6V/4.2W | 36 | 110.3 | 28 | 30-70 |
| TCAL-61-3W | 6V/4.2W | 6V/4.2W | 73.5 | 155.2 | 61 | 60-150 |
| TCAL-94-3W | 6V/4.2W | 6V/4.2W | 106 | 203 | 94 | 90-200 |
| TCAL-110-3W | 6V/4.2W | 6V/4.2W | 124 | 213.6 | 110 | 120-250 |
| TCL-22-3W | 6V/4.2W | 6V/4.2W | 27 | 87 | 22 | 30-70 |
