The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

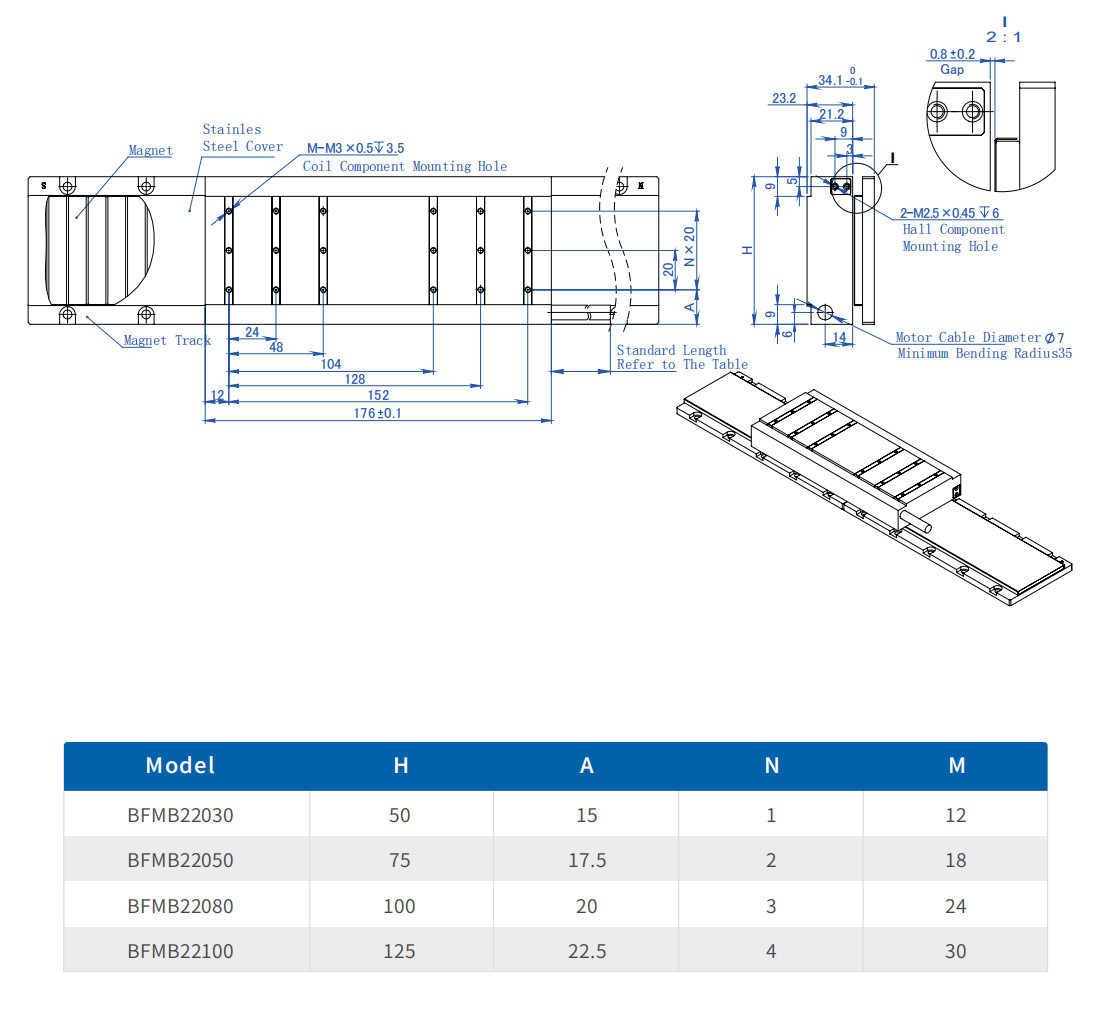

| BFMB22 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMB22030 | BFMB22050 | BFMB22080 | BFMB22100 |
| Peak Force | Fp | N | 366 | 670 | 974 | 1280 |
| Continuous Force | Fc | N | 121 | 223 | 325 | 424 |
| Motor Constant | Km | N/SQRT (W) | 13.6 | 20.6 | 25.5 | 30.0 |
| Peak Current | Ip | Arms | 16 | 16 | 16 | 16 |
| Continuous Current | Ic | Arms | 5.2 | 5.2 | 5.2 | 5.2 |
| Resistance@25°C | Rm | Ohms L-L | 2 | 2.9 | 4 | 4.9 |
| Inductance | L | mH L-L | 8 | 11 | 15 | 19 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 19 | 35 | 51 | 66.5 |
| Force Constant | Kf | N/Arms | 23.3 | 42.9 | 62.5 | 81.5 |
| Electrical Time Constant | Te | ms | 4.1 | 3.79 | 3.75 | 3.88 |
| Electrical Cycle(N to N) | 2t | mm | 20 | 20 | 20 | 20 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.5 | 0.8 | 1.2 | 1.5 |
| Coil Mass | Mc | kg | 1.1 | 1.7 | 2.3 | 2.9 |
| Track Mass | Mw | kg/m | 3.3 | 5 | 7 | 8.8 |
