The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

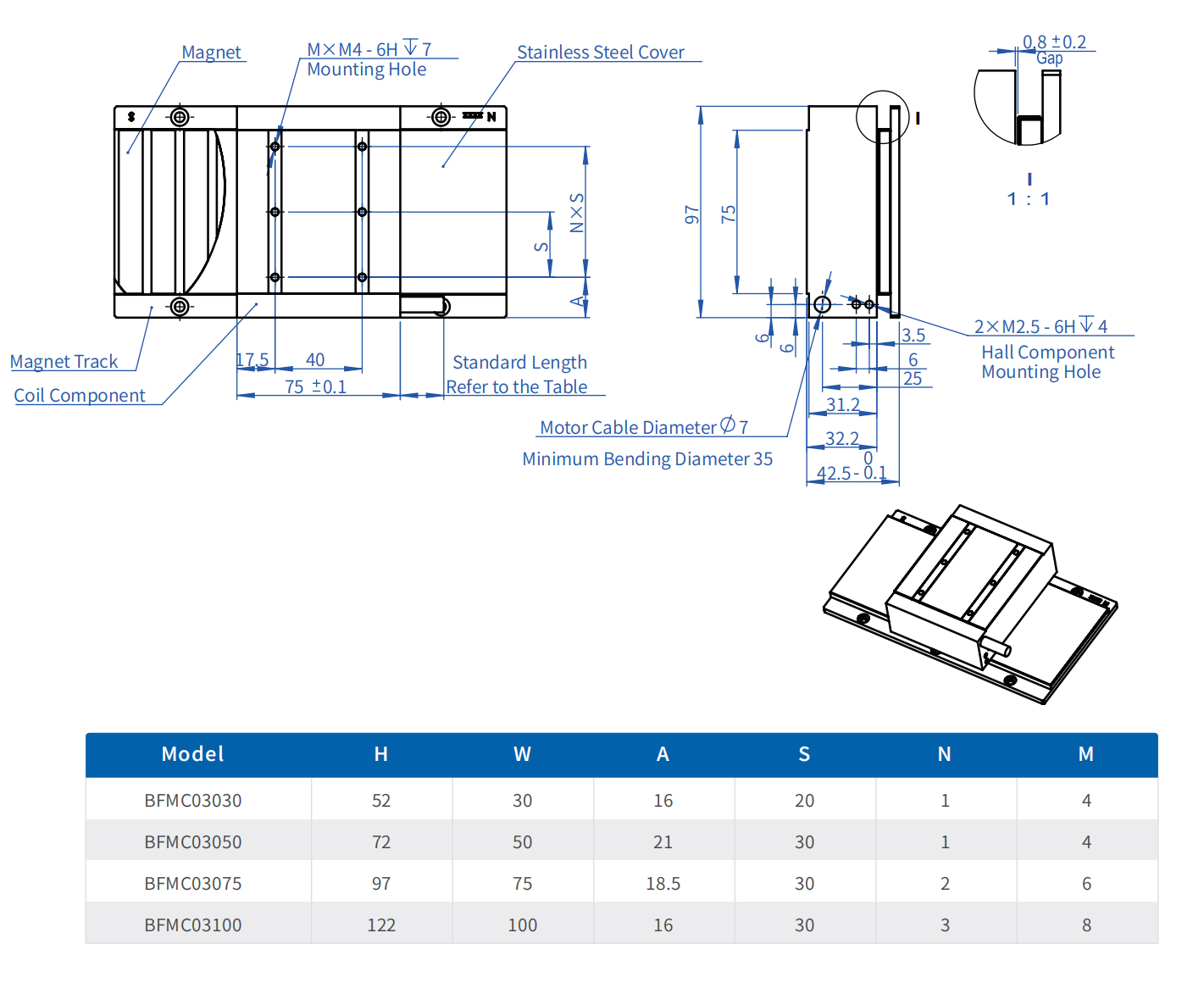

| BFMC03 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMC03030 | BFMC03050 | BFMC03075 | BFMC03100 |
| Peak Force | Fp | N | 190 | 316 | 474 | 632 |
| Continuous Force | Fc | N | 63 | 105 | 158 | 210 |
| Motor Constant | Km | N/SQRT (W) | 10.4 | 14.9 | 19.9 | 24.8 |
| Peak Current | Ip | Arms | 15 | 15 | 15 | 15 |
| Continuous Current | Ic | Ams | 4 | 4 | 4 | 4 |
| Resistance@25°℃ | Rm | Ohms L-L | 1.5 | 2.1 | 2.6 | 3 |
| Inductance | L | mH L-L | 6.9 | 11.5 | 16.5 | 22 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 12.9 | 21.5 | 32.3 | 43 |
| Force Constant | Kf | N/Arms | 15.6 | 26.3 | 39.4 | 52.5 |
| Electrical Time Constant | Te | ms | 4.6 | 5.6 | 6.3 | 7.3 |
| Electrical Cycle(N to N) | 2T | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.3 | 0.5 | 0.7 | 0.9 |
| Coil Mass | Mc | kg | 0.58 | 0.88 | 1.13 | 1.48 |
| Track Mass | Mw | kg/m | 2.5 | 3.8 | 5 | 6.5 |
