The thrust density is high, and the iron core adopts a laminated structure to concentrate the magnetic flux.
The core design is very economical and only requires a single row of magnets.
The laminated structure and large surface area ensure good heat dissipation.
Modular magnetic tracks allow for unlimited travel lengths.
Download

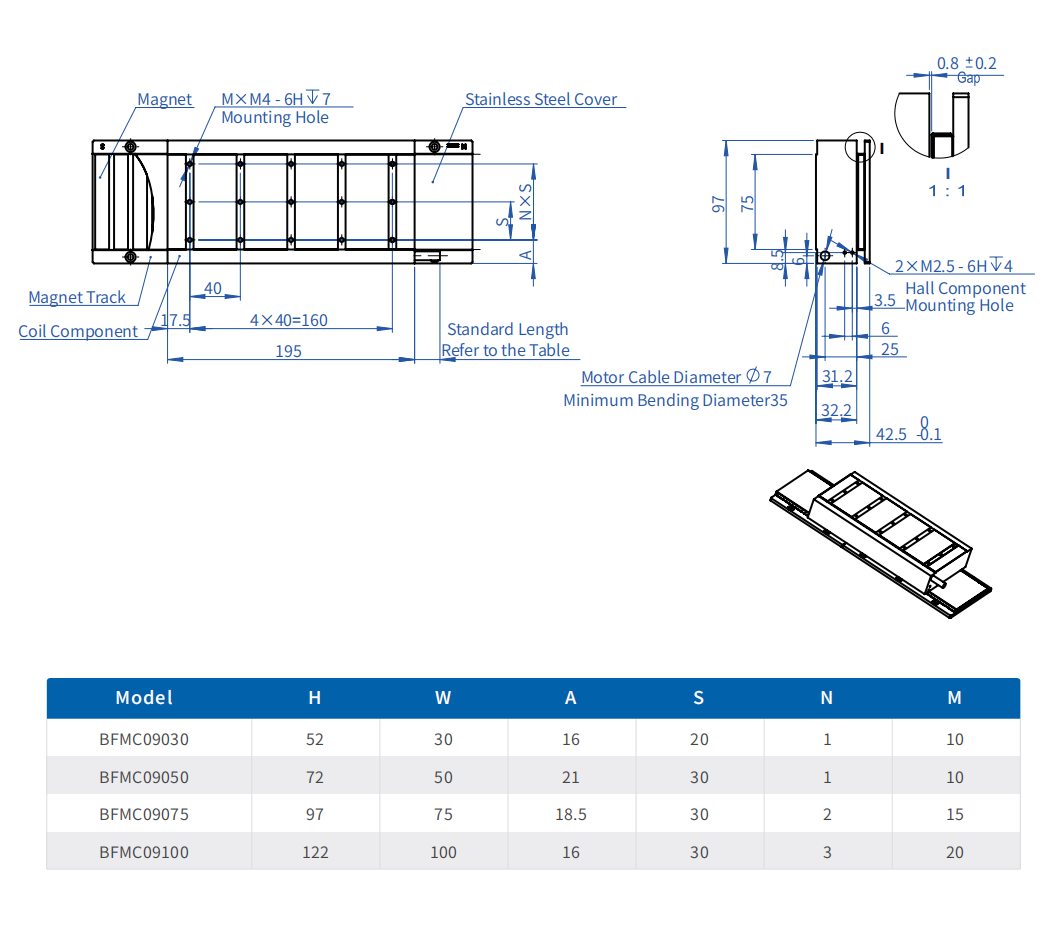

| BFMCO9 Series Technical Data | ||||||
| Performance Parameters | Symbol | Unit | BFMC09030 | BFMC09050 | BFMC09075 | BFMC09100 |
| Peak Force | Fp | N | 569 | 948 | 1421 | 1895 |
| Continuous Force | Fc | N | 188 | 315 | 473 | 630 |
| Motor Constant | Km | N/SQRT (W) | 20.5 | 28.2 | 37 | 45.5 |
| Peak Current | lp | Ams | 15 | 15 | 15 | 15 |
| Continuous Current | lc | Ams | 4 | 4 | 4 | 4 |
| Resistance@25℃ | Rm | Ohms L-L | 3.5 | 5.2 | 6.8 | 8 |
| Inductance | L | mH L-L | 20.7 | 34.5 | 49.5 | 66 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 38.3 | 64.3 | 96.5 | 128.6 |
| Force Constant | Kf | N/Arms | 46.9 | 78.8 | 118.1 | 157.5 |
| Electrical Time Constant | Te | ms | 5.91 | 6.63 | 7.28 | 8.25 |
| Electrical Cycle(N to N) | 2T | mm | 30 | 30 | 30 | 30 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0.9 | 1.4 | 2.1 | 2.8 |
| Coil Mass | Mc | kg | 1.73 | 2.63 | 3.38 | 4.43 |
| Track Mass | Mw | kg/m | 2.5 | 3.8 | 5 | 6.5 |
