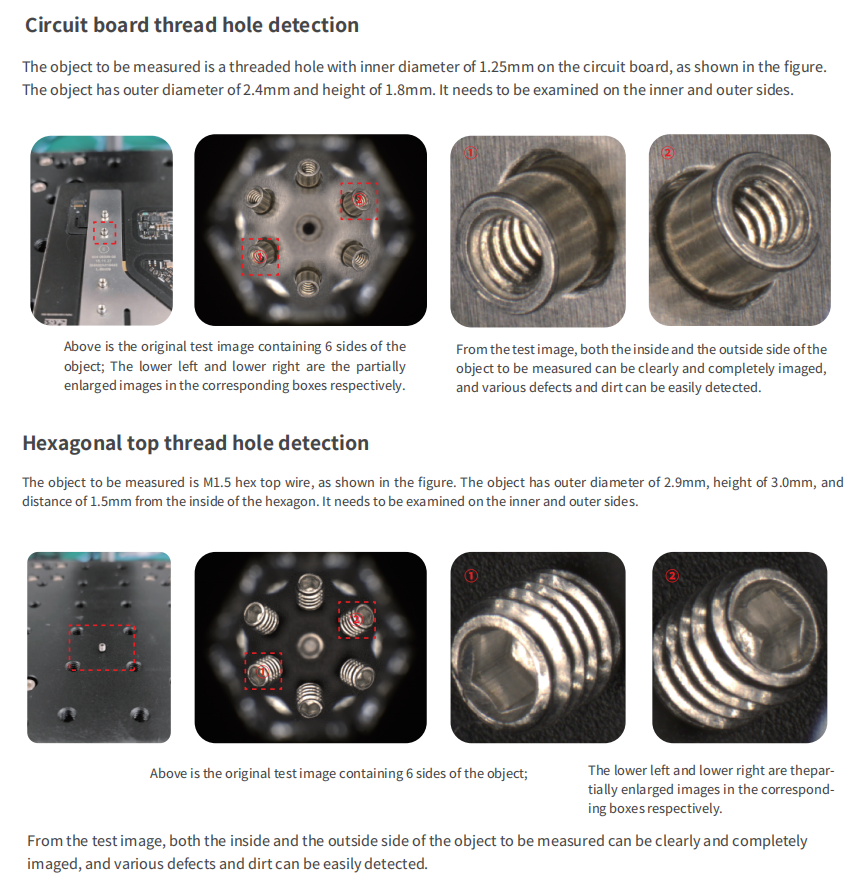

Single camera can obtain 6 symmetrical side images of the object,which can completely cover the side of the object
Suitable for detecting internal thread workpieces with an inner diameter of 1~3mm. The ratio of the measured depth to the inner diameter is about 1.2:1
Download
| Model | WD mm |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mmxmm |
Illuminator Voltage V, DC |
Illuminator Power W |
Object Field of View Diameter x Depth（mm×mm） 2/3 8.45*7.07 |
|
| 最小 | 最大 | ||||||||
| TCSAMP23-3 | 13. | 4.5 | 450-650 | C | Φ53.4x214.7 | 24 | 1.1 | 1.0x1.2 | 3.0x3.6 |
| TCSAMP23-2.1-3.3x | 15.5 | 4.5 | 450-650 | C | Φ42x222.7 | 24 | 0.8 | 0.76×2.51 | 2.10×6.93 |
