Compared with iron core motors, the mover has a lighter mass and can achieve high speeds.
It has better dynamic performance in terms of acceleration.
Fixed air gap, easy to align and install
The balancing effect of the double-row magnetic rails offsets the attraction between the magnets,
making them easy to install and handle.
Download

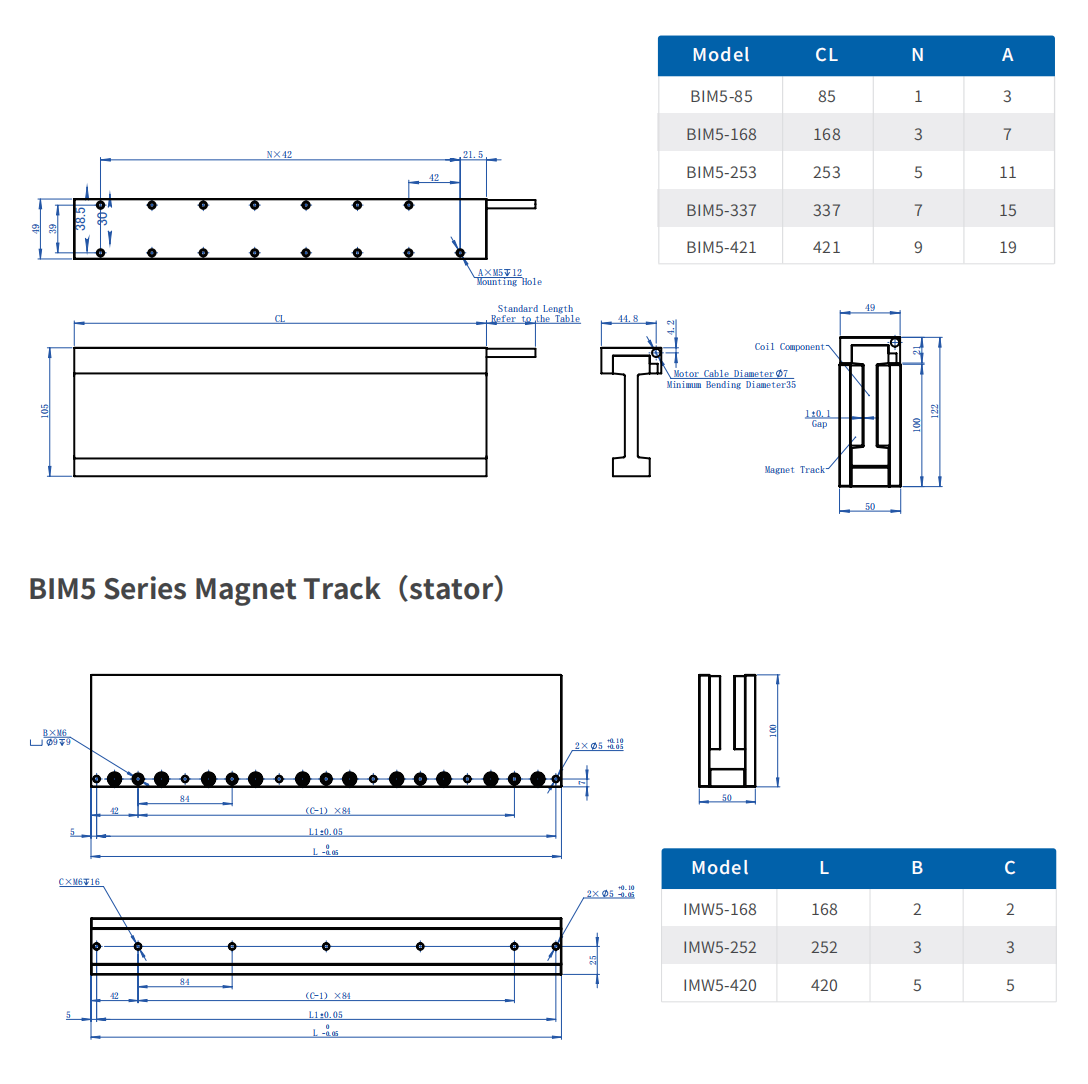

| BIM5 Series Technical Data | |||||||
| Performance Parameters | Symbol | Unit | BIM5-85 | BIM5-169 | BIM5-253 | BIM5-337 | BIM5-421 |
| Peak Force | Fp | N | 555 | 1111 | 1666 | 2222 | 2777 |
| Continuous Force | Fc | N | 98 | 197 | 295 | 393 | 491 |
| Motor Constant | Km | N/SQRT (W) | 17 | 24.00 | 29.4 | 33.9 | 38 |
| Peak Current | lp | Arms | 13 | 13 | 13 | 13 | 13 |
| Continuous Current | Ic | Arms | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Resistance@25℃ | Rm | Ohms L-L | 4.2 | 8.5 | 12.7 | 16.9 | 21.1 |
| Inductance | L | mH L-L | 8.2 | 16.3 | 24.5 | 32.6 | 40.8 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 34.9 | 69.8 | 104.6 | 139.5 | 174.4 |
| Force Constant | Kf | N/Arms | 42.7 | 85.4 | 128.2 | 170.9 | 213.6 |
| Electrical Time Constant | Te | ms | 1.93 | 1.93 | 1.93 | 1.93 | 1.93 |
| Electrical Cycle(N to N) | 2T | mm | 84 | 84 | 84 | 84 | 84 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0 | 0 | 0 | 0 | 0 |
| Coil Mass | Mc | kg kg/m | 0.77 | 1.54 | 2.31 | 3.08 | 3.85 |
| Track Mass | Mw | 22.4 | |||||
