High-density LED array arrangement,high brightness Provide different angles of irradiation Configurable different diffusing plate, good uniformity

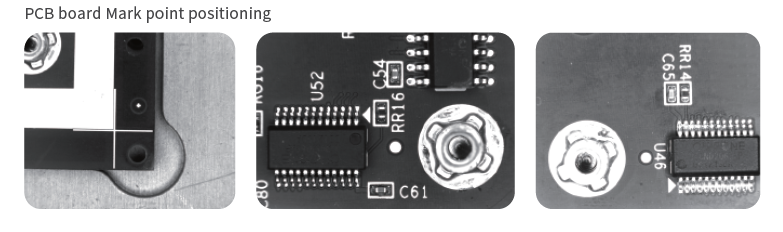

Substrate parts detection Contour extraction Electronic components detection Packaging appearance defect detection
Download
| Product Model | Power | Viewing Angle | Outer Diameter（mm） | Inner Diameter（mm） | |
| R | B/G/W | ||||
| LT-RI5000HY | 24V/1.9W | 24V/2.9W | 0 | 50 | 25 |
| LT-24V-52RT15 | 24V/2.9W | 24V/3.5W | 15 | 52 | 20 |
| LT-24V-52RT30 | 24V/2.5W | 24V/2.6W | 30 | 52 | 20 |
| LT-24V-52RT45 | 24V/2.5W | 24V/2.9W | 45 | 52 | 21 |
| LT-24V-52RT60 | 24V/2.5W | 24V/2.7W | 60 | 52 | 21 |
| LT-24V-52RT75 | 24V/2.5W | 24V/3W | 75 | 52 | 24 |
| LT-RI6030HY | 24V/1.44W | 24V/2.16W | 30 | 64 | 33.5 |
| LT-24V-72RT00 | 24V/5.2W | 24V/4.2W | 0 | 72 | 32 |
| LT-24V-72RT15 | 24V/4W | 24V/4.8W | 15 | 72 | 30 |
| LT-24V-72RT30 | 24V/4.3W | 24V/3.9W | 30 | 72 | 32 |
| LT-24V-72RT45 | 24V/4.7W | 24V/3.8W | 45 | 72 | 34 |
| LT-24V-72RT60 | 24V/4.7W | 24V/3.5W | 60 | 72 | 38 |
| LT-24V-72RT75 | 24V/4.7W | 24V/5.6W | 75 | 72 | 41 |
| LT-24V-72RT90 | 24V/1.8W | 24V/2.16W | 90 | 72 | 45 |
| LT-24V-78RT15 | 24V/5W | 24V/6W | 15 | 78 | 35.5 |
| LT-24V-78RT30 | 24V/5.9W | 24V/4.7W | 30 | 78 | 37.5 |
| LT-24V-78RT45 | 24V/5W | 24V/4.9W | 45 | 78 | 37.5 |
| LT-24V-78RT60 | 24V/6.1W | 24V/7.3W | 60 | 78 | 45.5 |
| LT-24V-78RT75 | 24V/6.8W | 24V/8.2W | 75 | 78 | 45.5 |
| LT-24V-92RT00 | 24V/7.7W | 24V/5.4W | 0 | 92 | 42 |
| LT-24V-92RT15 | 24V/8.1W | 24V/8.2W | 15 | 92 | 42.5 |
| LT-24V-92RT30 | 24V/8.2W | 24V/5.7W | 30 | 92 | 44 |
| LT-24V-92RT45 | 24V/8.7W | 24V/6W | 45 | 92 | 47.5 |
| LT-24V-92RT45-UV375 | 24V/4.8W(375m) | 45 | 92 | 52 | |
| LT-24V-92RT60 | 24V/4.8W | 24V/3.6W | 60 | 92 | 62 |
| LT-24V-92RT90 | 24V/2.16W | 24V/2.6W | 90 | 92 | 65 |
| LT-RI9690HY | 24V/1.2W | 24V/2W | 90 | 96 | 60 |
| LT-RI0060HY | 24V/4.32W | 24V/5.28W | 60 | 100 | 60 |
| LT-RI12000HY-X | 24V/4.6W | 24V/8.3W | 0 | 120 | 76 |
| LT-24V-120RT00 | 24V/13.32W | 24V/9.8W | 0 | 120 | 50 |
| LT-24V-120RT15 | 24V/12.24W | 24V/14.69W | 15 | 120 | 60.5 |
| LT-24V-120RT30 | 24V/12.6W | 24V/9.7W | 30 | 120 | 61 |
| LT-24V-120RT45 | 24V/11.2W | 24V/13.4W | 45 | 120 | 75 |
| LT-24V-120RT60 | 24V/14.4W | 24V/17.3W | 60 | 120 | 75 |
| LT-24V-150RT30 | 24V/16.9W | 24V/12.3W | 30 | 150 | 91.5 |
| LT-24V-150RT60 | 24V/17.28W | 24V/20.74W | 60 | 150 | 105.5 |
| LT-24V-150RT90 | 24V/3.96W | 24V/4.75W | 90 | 150 | 123 |
| LT-RI17690HY-X-V1 | 24V/2.4W | 24V/5W | 90 | 176 | 134 |
| LT-24V-180RT30 | 24V/23.76W | 24V/28.5W | 30 | 163.6 | 120 |
| LT-24V-150RT00-XT | - | 24V/12.7W | 0 | 150 | 68 |
| LT-24V-180RT00-XT | - | 24V/12.3W | 0 | 180 | 80 |
| LT-24V-180RT75-XT | - | 24V/8.0W | 75 | 180 | 142 |
| LT-24V-208RT45-XT | - | 24V/16.3W | 45 | 208 | 166 |
| LT-24V-208RT60-XT | - | 24V/16.3W | 60 | 208 | 168 |
| LT-24V-240RT45-XT | - | 24V/32W | 45 | 240 | 187 |
| LT-24V-240RT60-XT | - | 24V/32W | 60 | 240 | 187 |
