Integrated lighting design, easy lighting Double mirrorimage design, large working distance, adjustable mirror group spacing to fine-tune theimageposition

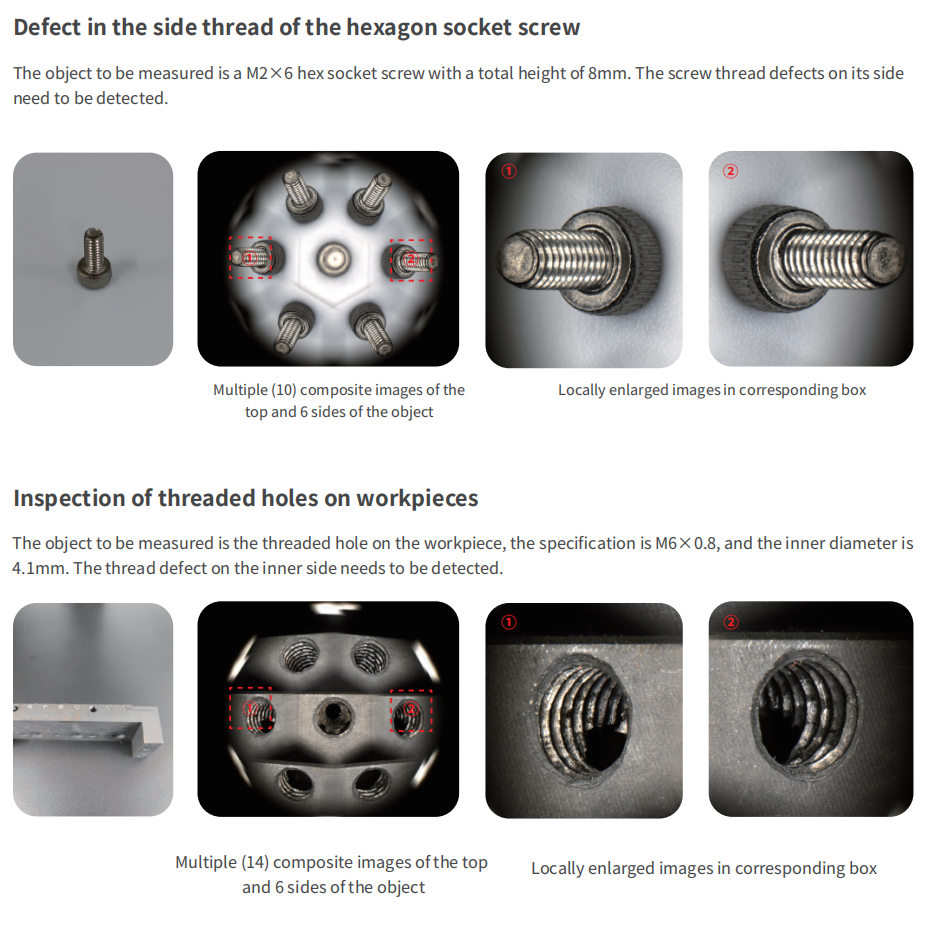

lall parts with a diameter of 1-15mm can be detected
Download
| Model |
WD mm |
Resolution um |
Effective F Number |
Wavelength Range (nm) |
Mount |
Dimensions mmxmm |
Illuminator Voltage V,DC |
Illuminator Power W |
Object Field of View Diameter x Depth（mmmm） 13.11X9.83mm |
||
| Min | Type | Max | |||||||||
| TCSLP-AMP1-15 | 7.0 | 12.4 | 6.5 | 450~650 | C | Φ58×257.4 | 24 | 1.1 | 1.0×12.0 | 6.0×6.0 |
15.0×1.0 |
