Compact and lightweight, it is lighter in weight compared with traditional linear motors.
The zero cogging effect coreless design achieves zero cogging effect.
The nominal annular air gap with a large air gap of 0.5mm to 1.75mm facilitates installation and centering.
Closed magnetic bodies, suitable for various environments.
Effective utilization of magnetic flux coils to wrap around magnets, making full use of magnetic flux.

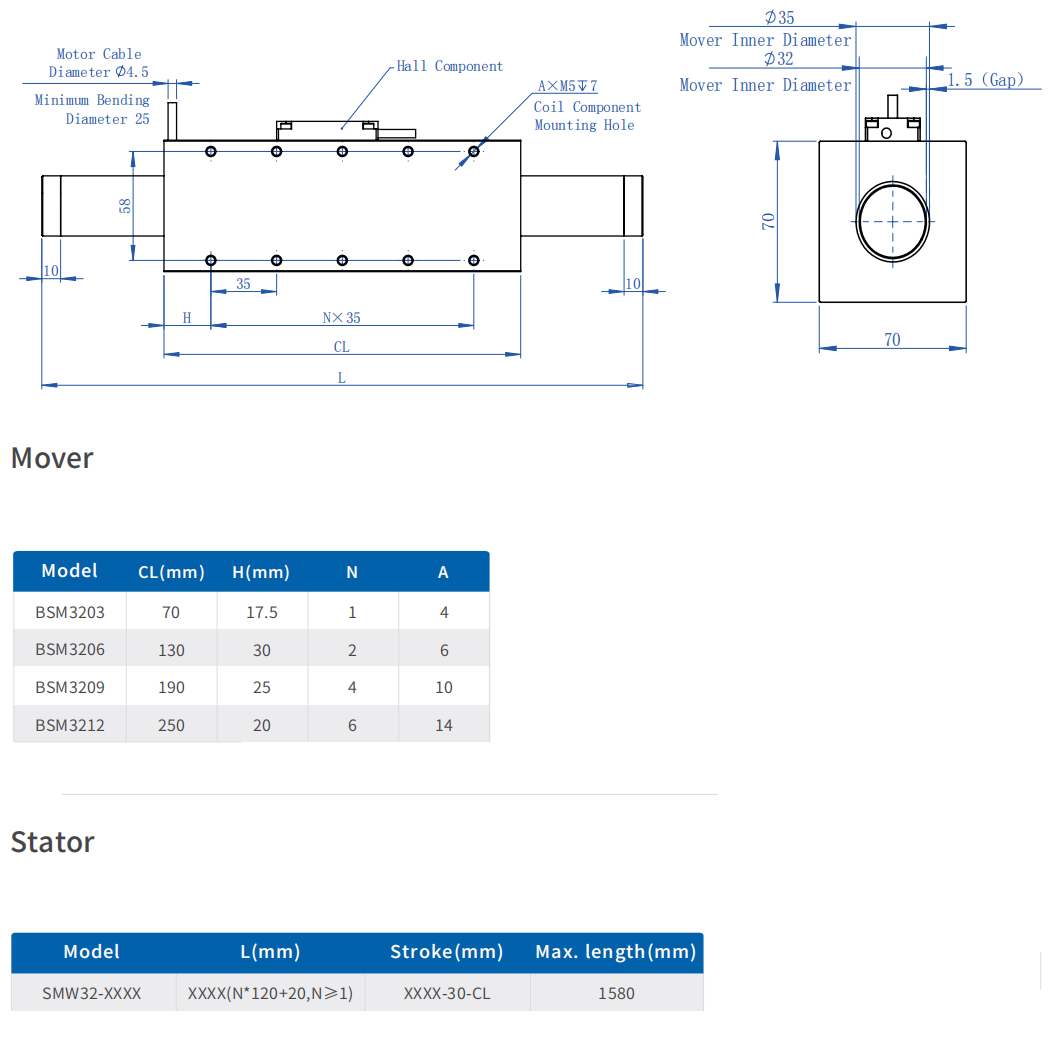

Download
| BSM32 Series Performance Parameters | ||||||
| Performance Parametes | Symbol | Unit | BSM3203 | BSM3206 | BSM3209 | BSM3212 |
| Peak Force | Fp | N | 240 | 480 | 720 | 960 |
| Continuous Force | Fc | N | 80 | 160 | 240 | 320 |
| Motor Constant | Km | N/SQRT (W) | 9.4 | 13.3 | 16.7 | 22.9 |
| Peak Current | Ip | Arms | 7.5 | 7.5 | 7.5 | 7.5 |
| Continuous Current | lc | Ams | 2.5 | 2.5 | 2.5 | 2.5 |
| Resistance@25°℃ | Rm | Ohms L-L | 7.7 | 15.4 | 22 | 30.8 |
| Inductance | L | mH L-L | 19 | 37 | 58 | 74 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 26.2 | 52.4 | 78.6 | 104.8 |
| Force Constant | Kf | N/Ams | 32 | 64 | 96 | 128 |
| Electrical Time Constant | Te | ms | 2.5 | 2.4 | 2.6 | 2.4 |
| Electrical Cycle(N to N) | 2t | mm | 120 | 120 | 120 | 120 |
| Max Coil Temperature | Tmax | °℃ | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0 | 0 | 0 | 0 |
| Coil Mass | Mc | kg | 1.1 | 2.2 | 3.3 | 4.4 |
