The coil adopts distributed winding, with a high slot fill factor and good heat dissipation effect.
The moving coil has no iron core, so there is no attraction between the moving coil and the stator magnetic track.
The coreless rotor has no cogging effect and runs smoothly.
Download

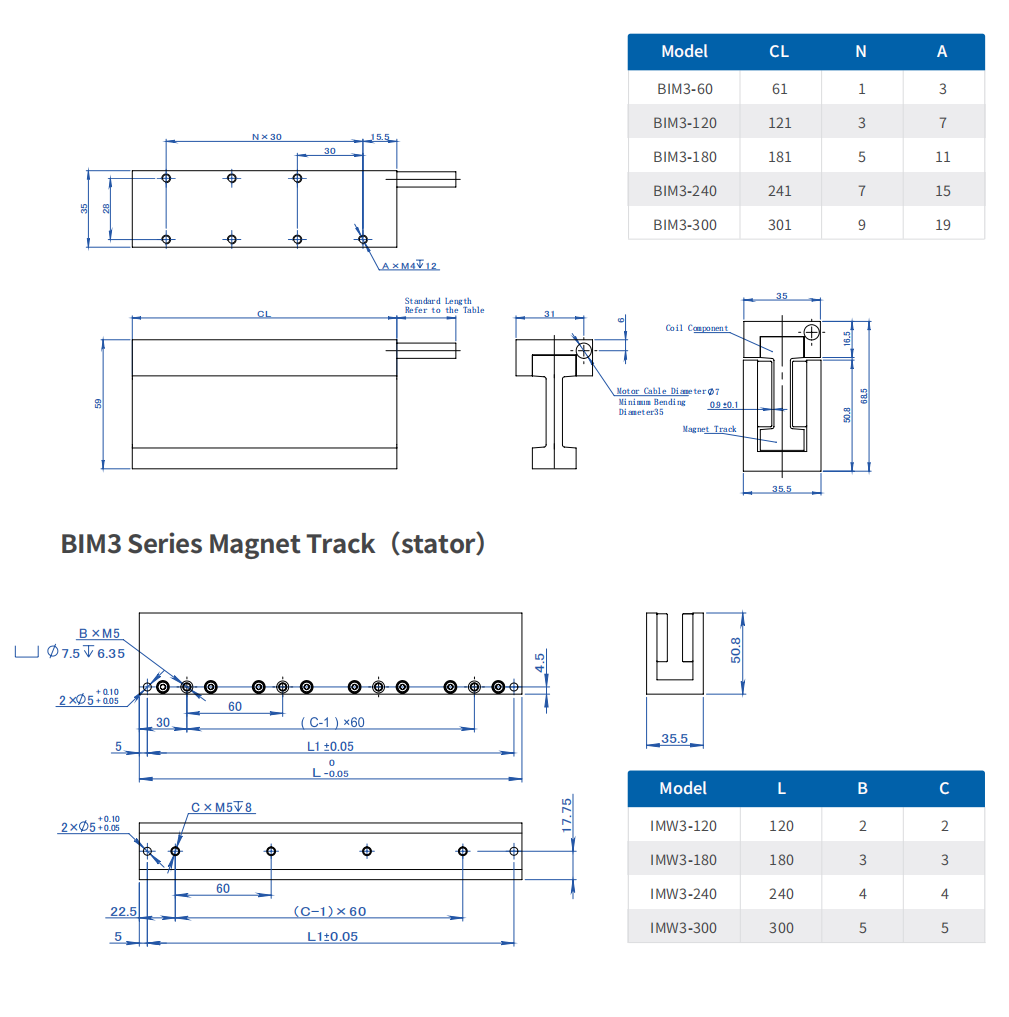

| BIM3 Series Technical Data | |||||||
| Performance Parameters | Symbol | Unit | BIM3-60 | BIM3-120 | BIM3-180 | BIM3-240 | BIM3-300 |
| Peak Force | Fp | N | 144 | 288 | 432 | 576 | 720 |
| Continuous Force | Fc | N | 28 | 56 | 84 | 112 | 140 |
| Motor Constant | Km | N/SQRT (W) | 5.9 | 8.4 | 10.3 | 11.9 | 13.3 |
| Peak Current | lp | Arms | 13 | 13 | 13 | 13 | 13 |
| Continuous Current | Ic | Arms | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Resistance@25℃ | Rm | Ohms L-L | 2.8 | 5.6 | 8.4 | 11.2 | 14 |
| Inductance | L | mH L-L | 2 | 4 | 6 | 8 | 10 |
| Back EMF Constant | Ke | Vpeak/m/s L-L | 9.7 | 19.5 | 29.2 | 39 | 48.7 |
| Force Constant | Kf | N/Arms | 12.2 | 24.4 | 36.5 | 48.7 | 60.9 |
| Electrical Time Constant | Te | ms | 0.71 | 0.71 | 0.71 | 0.71 | 0.71 |
| Electrical Cycle(N to N) | 2T | mm | 60 | 60 | 60 | 60 | 60 |
| Max Coil Temperature | Tmax | ℃ | 130 | 130 | 130 | 130 | 130 |
| Magnetic Attraction | Fa | kN | 0 | 0 | 0 | 0 | 0 |
| Coil Mass | Mc | kg | 0.25 | 0.5 | 0.75 9 | 1 | 1.25 |
| Track Mass | Mw | kg/m | 9 | ||||
