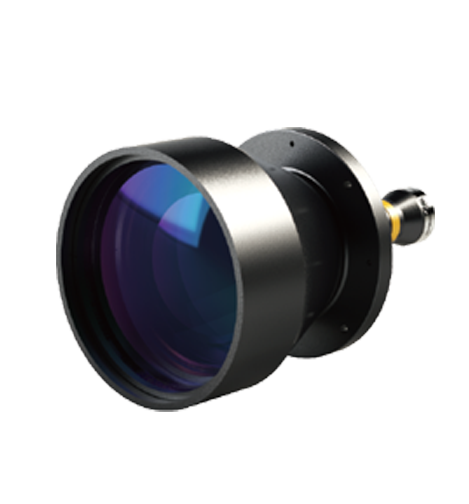

双远心镜头
产品特点
双远心设计 超高的分辨率 极佳的远心度 超低畸变 均匀的成像质量 较高光通量 高对比度 视场范围覆盖5.5mm至300mm 可支持传感器1/2.5"~35mm全画幅
产品应用
专为高端检测和精确量设计
资料下载
产品参数
产品案例
外形尺寸
产品参数
| 产品型号 | 放大倍率 | 工作距离mm | 匹配的最大CCD尺寸 | 像方最佳F/# | 像方最佳MTF | 景深mm | 畸变% | 远心度。 | 相机接口 | 尺寸规格mm×mm | 视野mm×mm |
| TCA35MM-075-180 | 0.75 | 180 | 35mm | 10 | 80 | 1.4 | ≤0.1 | ≤0.1 | M58 | Φ84×246.3 | 48.00×32.00 (35mm) |
| TCAV28MM-05-135 | 0.5 | 135 | 1.76"(28mm) | 12.5 | 100 | 4 | ≤0.1 | ≤0.1 | M42 | Φ78×185.3 | 45.00×33.80 (1.76") |
| TCA43F-024-258 | 0.24 | 258 | 4/3" | 7.8 | 105 | 10.8 | ≤0.1 | ≤0.1 | F | Φ124×266.5 | 74.42×59.67 (4/3") |
| TCA43F-0267-208 | 0.267 | 208 | 4/3" | 7.5 | 115 | 8.4 | ≤0.1 | ≤0.1 | F | Φ110×240.6 | 66.89X53.63 (4/3") |
| TCA43F-0333-178 | 0.333 | 178 | 4/3" | 7.5 | 120 | 5.4 | ≤0.1 | ≤0.1 | F | Φ92×218.5 | 53.63X43.00 (4/3") |
| TCA43F-035-180 | 0.35 | 180 | 4/3" | 7.5 | 120 | 4.9 | ≤0.1 | ≤0.1 | F | Φ85×163.5 | 51.03×40.91 (4/3") |
| TCA43F-0429-138 | 0.429 | 138 | 4/3" | 8 | 110 | 3.5 | ≤0.1 | ≤0.1 | F | Φ73.5×185.4 | 41.63X33.38 (4/3") |
| TCA43F-0571-118 | 0.571 | 118 | 4/3" | 9.4 | 100 | 2.3 | ≤0.1 | ≤0.1 | F | Φ60×149.5 | 31.28×25.08 (4/3") |
| TCA43-0571-118 | 0.571 | 118 | 4/3" | 9.4 | 100 | 2.3 | ≤0.1 | ≤0.1 | C | Φ60×178.5 | 31.28×25.08 (4/3") |
| TCA11-0233-229 | 0.233 | 229 | 1.1" | 8 | 115 | 11.8 | ≤0.1 | ≤0.1 | C | Φ104x210.7 |
60.51x44.20 (1.1") |
| TCA11-0184-258 | 0.184 | 258 | 1.1" | 5.5 | 130 | 13 | ≤0.1 | ≤0.1 | C | Φ124×270.5 | 76.63×55.98 (1.1") |
| TCA11-025-230D | 0.25 | 230 | 1.1" | 6 | 132 | 7.6 | ≤0.1 | ≤0.1 | C | Φ99×207.3 | 56.40 ×41.20 (1.1") |
| TCA11-0333-178 | 0.333 | 178 | 1.1" | 7.5 | 120 | 5.4 | ≤0.1 | ≤0.1 | C | Φ92 ×247.5 | 42.34×30.93 (1.1") |
| TCA11-0429-138 | 0.429 | 138 | 1.1" | 8.1 | 105 | 3.5 | ≤0.1 | ≤0.1 | C | Φ60×214.6 | 32.87×24.01 (1.1") |
| TCAV11-04-150HR | 0.4 | 150 | 1.1" | 8.0 | 125 | 4.0 | ≤0.1 | ≤0.1 | C | Φ64x144.2 | 35.33x25.88(1.1") |
| TCA11-06-160 | 0.6 | 160 | 1.1" | 8.0 | 100 | 1.8 | ≤0.1 | ≤0.1 | C | Φ60×181.6 | 23.50 ×17.17 (1.1") |
| TCAV11-0638-75 | 0.638 | 75 | 1.1" | 7.5 | 115 | 1.5 | ≤0.1 | ≤0.1 | C | Φ44×134.5 | 22.10×16.14 (1.1") |
| TCA11-08-110 | 0.8 | 110 | 1.1" | 7.5 | 120 | 0.9 | ≤0.1 | ≤0.1 | C | Φ48×163.3 | 17.63×12.88 (1.1") |
| TCA11-0923-73 | 0.923 | 73 | 1.1" | 9.4 | 92 | 0.9 | ≤0.1 | ≤0.1 | C | Φ48×144.6 | 15.28×11.16 (1.1") |
| TCA11-1.0-75 | 1 | 75 | 1.1" | 8.5 | 100 | 0.7 | ≤0.1 | ≤0.1 | C | Φ38×116.6 | 14.10×10.30 (1.1") |
| TCA11-1.0-135 | 1 | 135 | 1.1" | 10 | 75 | 0.8 | ≤0.1 | ≤0.1 | C | Φ45×163.6 | 14.10×10.30 (1.1") |
| TCA1-0184-208 | 0.184 | 208 | 1" | 6.4 | 130 | 15.1 | ≤0.1 | ≤0.1 | C | Φ106×226.2 | 65.22×54.35 (1") |
| TCA1-0138-280 | 0.138 | 280 | 1" | 6.6 | 120 | 27.7 | ≤0.1 | ≤0.1 | C | Φ150×299.7 | 86.96×72.46 (1") |
| TCA1-0166-258 | 0.166 | 258 | 1" | 6.8 | 130 | 19.7 | ≤0.1 | ≤0.1 | C | Φ122×251.7 | 72.29×60.24 (1") |
| TCA1-0206-228 | 0.206 | 228 | 1" | 6.5 | 135 | 12.3 | ≤0.1 | ≤0.1 | C | Φ106×214.7 | 58.25×48.54 (1") |
| TCA1-0294-138HR | 0.294 | 138 | 1" | 6.5 | 160 | 6.0 | ≤0.1 | ≤0.1 | C | Φ79x220 | 40.81x34.01(1") |
| TCA1-0296-138 | 0.296 | 138 | 1" | 6.5 | 125 | 5.9 | ≤0.1 | ≤0.1 | C | Φ74×178.7 | 40.54×33.78 (1") |
| TCA1-0346-138 | 0.346 | 138 | 1" | 6.5 | 135 | 4.3 | ≤0.1 | ≤0.1 | C | Φ62×141.1 | 34.68×28.90 (1") |
| TCA1-0395-118 | 0.395 | 118 | 1" | 6.5 | 135 | 3.3 | ≤0.1 | ≤0.1 | C | Φ60×144.8 | 30.38×25.32 (1") |
| TCAV1-05-110 | 0.5 | 110 | 1" | 7.2 | 125 | 2.3 | ≤0.1 | ≤0.1 | C | Φ48×137.2 | 24.00×20.00 (1") |
| TCA1-05-160 | 0.5 | 160 | 1" | 7.5 | 115 | 2.4 | ≤0.1 | ≤0.1 | C | Φ60×181.5 | 24.00×20.00(1") |
| TCA1-06-160 | 0.6 | 160 | 1" | 8 | 100 | 1.8 | ≤0.1 | ≤0.1 | C | Φ51×181.6 | 20.00×16.67 (1") |
| TCA1-0638-70 | 0.638 | 70 | 1" | 8.6 | 110 | 1.7 | ≤0.1 | ≤0.1 | C | Φ38.5×111.3 | 18.81×15.67 (1") |
| TCA23-04-240 | 0.4 | 240 | 2/3" | 16 | 52 | 8 | ≤0.1 | ≤0.1 | C | Φ44×118.3 | 21.13×17.68 (2/3") |
| TCAV23-011-115 | 0.11 | 115 | 2/3" | 5 | 160 | 33.1 | ≤0.1 | ≤0.1 | C | Φ130×186.2 | 76.82×64.27 (2/3") |
| TCA23-0114-258 | 0.114 | 258 | 2/3" | 4.8 | 150 | 29.5 | ≤0.1 | ≤0.1 | C | Φ124×240.4 | 74.12×62.02 (2/3") |
| TCAV23-014-115 | 0.14 | 115 | 2/3" | 5 | 165 | 20.4 | ≤0.1 | ≤0.1 | C | Φ107×168.9 | 60.36×50.50 (2/3") |
| TCA23-0142-228 | 0.142 | 228 | 2/3" | 5.4 | 155 | 21.4 | ≤0.1 | ≤0.1 | C | Φ96×180.3 | 59.51×49.79 (2/3") |
| TCA23V-016-115 | 0.16 | 115 | 2/3" | 4.5 | 150 | 14.1 | ≤0.1 | ≤0.1 | C | Φ93.5×153.8 | 52.81×44.19 (2/3") |
| TCA23-016-178 | 0.16 | 178 | 2/3" | 5.3 | 168 | 16.6 | ≤0.1 | ≤0.1 | C | Φ94×192 | 52.81×44.19 (2/3") |
| TCAV23-018-115 | 0.18 | 115 | 2/3" | 4.5 | 160 | 11.1 | ≤0.1 | ≤0.1 | C | Φ85×155.1 | 46.94×39.28 (2/3") |
| TCAV23-022-115 | 0.22 | 115 | 2/3" | 4.5 | 160 | 7.4 | ≤0.1 | ≤0.1 | C | Φ73×150.5 | 38.41×32.14 (2/3") |
| TCA23-022-200 | 0.22 | 200 | 2/3" | 8 | 110 | 13.2 | ≤0.1 | ≤0.1 | C | Φ63.7×146 | 38.41×32.14 (2/3") |
| TCA23-023-140 | 0.23 | 140 | 2/3" | 5.4 | 150 | 8.2 | ≤0.1 | ≤0.1 | C | Φ67×124.8 | 36.74×30.74 (2/3") |
| TCA23-0271-118 | 0.271 | 118 | 2/3" | 4.9 | 175 | 5.3 | ≤0.1 | ≤0.1 | C | Φ59 ×123.1 | 31.18X26.09 (2/3") |
| TCAV23-028-115 | 0.28 | 115 | 2/3" | 4.5 | 160 | 4.6 | ≤0.1 | ≤0.1 | C | Φ61×128.2 | 30.18X25.25 (2/3") |
| TCAV23-036-115 | 0.36 | 115 | 2/3" | 4.5 | 160 | 2.8 | ≤0.1 | ≤0.1 | C | Φ53.4X127.6 | 23.47×19.64 (2/3") |
| TCA23-0438-73 | 0.438 | 73 | 2/3" | 6 | 145 | 2.5 | ≤0.1 | ≤0.1 | C | Φ40×116.7 | 19.29 X16.14 (2/3") |
| TCAV23-05-110 | 0.5 | 110 | 2/3" | 6.8 | 140 | 2.2 | ≤0.1 | ≤0.1 | C | Φ36×137.2 | 16.90× 14.14 (2/3") |
| TCAC23-05-110 | 0.5 | 110 | 2/3" | 6.8 | 140 | 2.2 | ≤0.1 | ≤0.1 | C | Φ36×141.3 | 16.90×14.14 (2/3") |
| TCAV23-06-115 | 0.6 | 115 | 2/3" | 4.5 | 120 | 1 | ≤0.1 | ≤0.1 | C | Φ44×132.8 | 14.08×11.78 (2/3") |
| TCA23-1.5-110 | 1.5 | 110 | 2/3" | 10 | 67 | 0.18 | ≤0.1 | ≤0.1 | C | Φ30 ×128.9 | 5.63×4.71 (2/3") |
| TCA118-03-200 | 0.3 | 200 | 1/1.8" | 5.3 | 160 | 4.7 | ≤0.1 | ≤0.1 | C | Φ54×151.5 | 23.86×18.13 (1/1.8") |
| TCA118-0346-73 | 0.346 | 73 | 1/1.8 " | 4.7 | 154 | 3.1 | ≤0.1 | ≤0.1 | C | Φ42×107.7 | 20.69 ×15.72 (1/1.8") |
产品案例

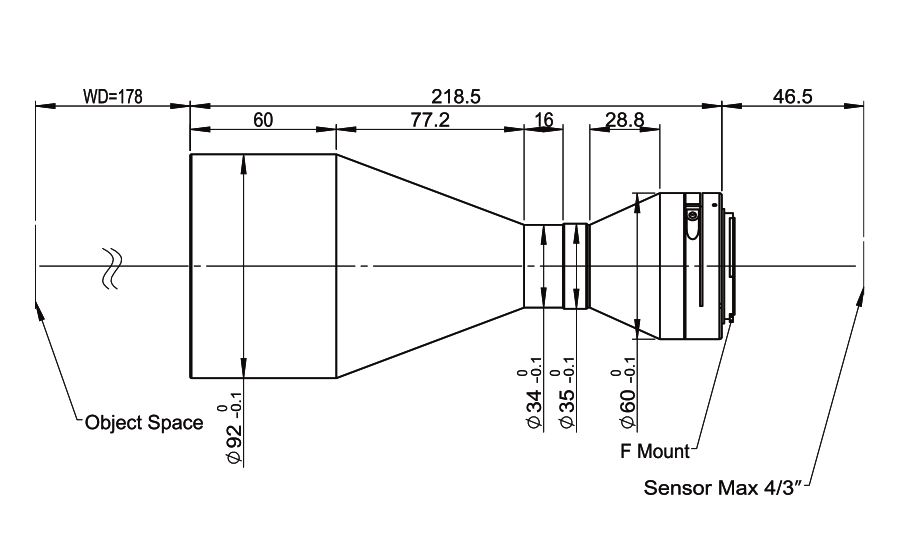

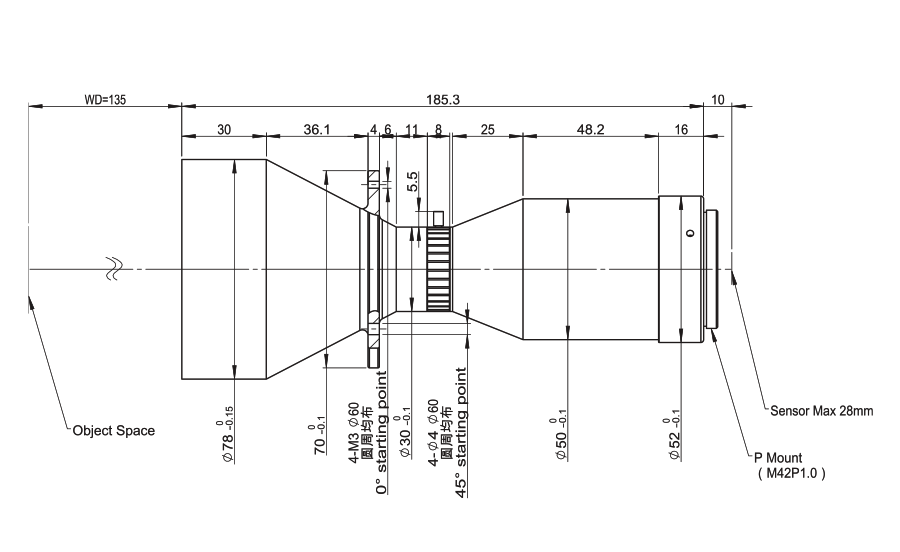

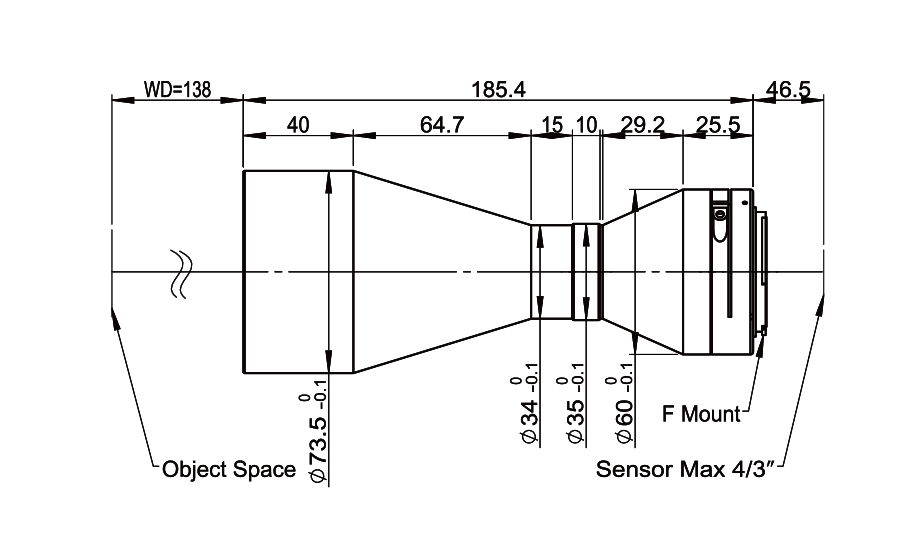

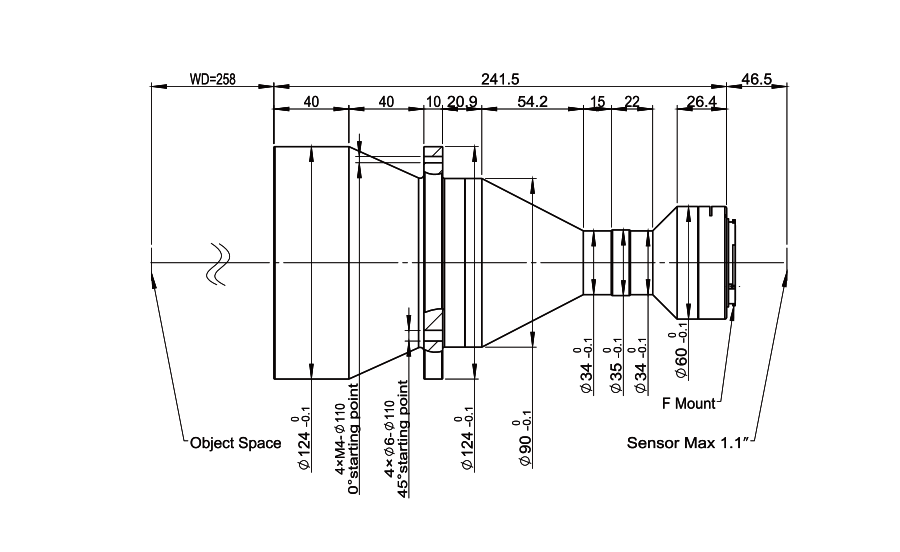

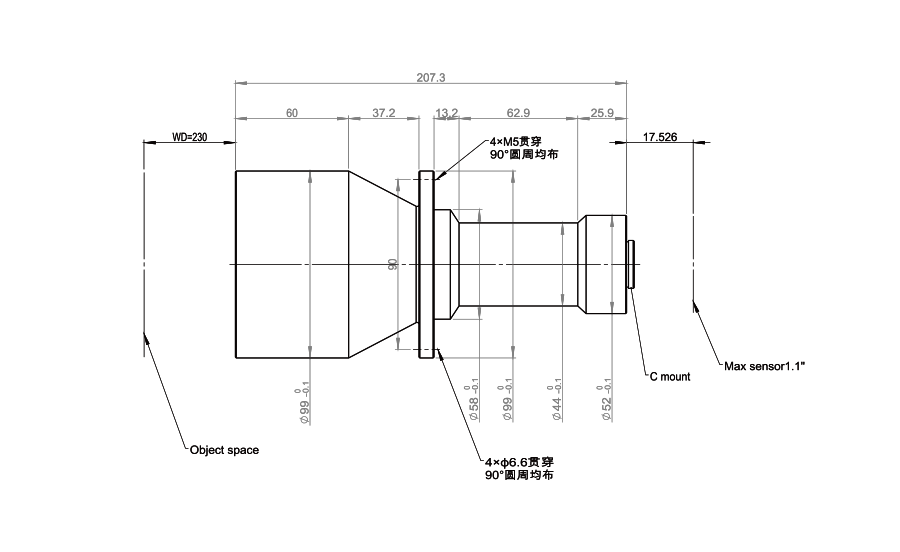

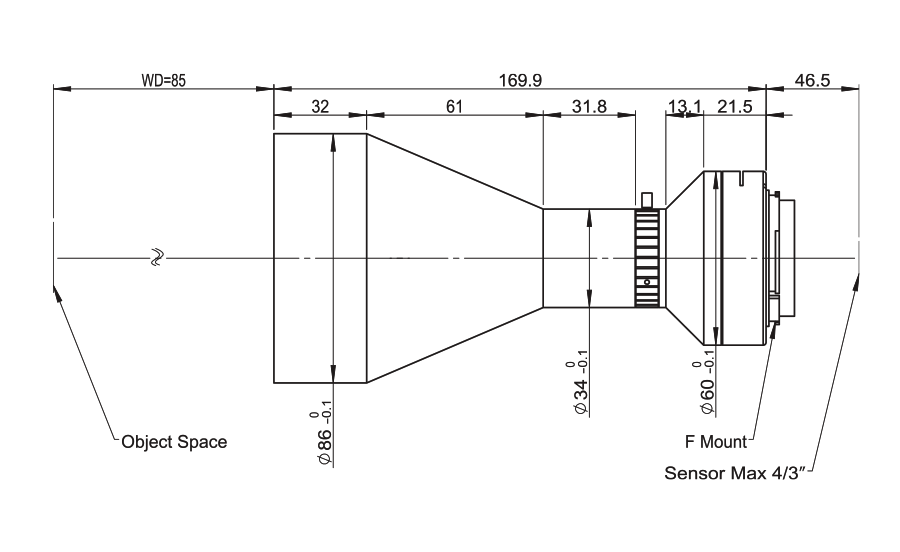

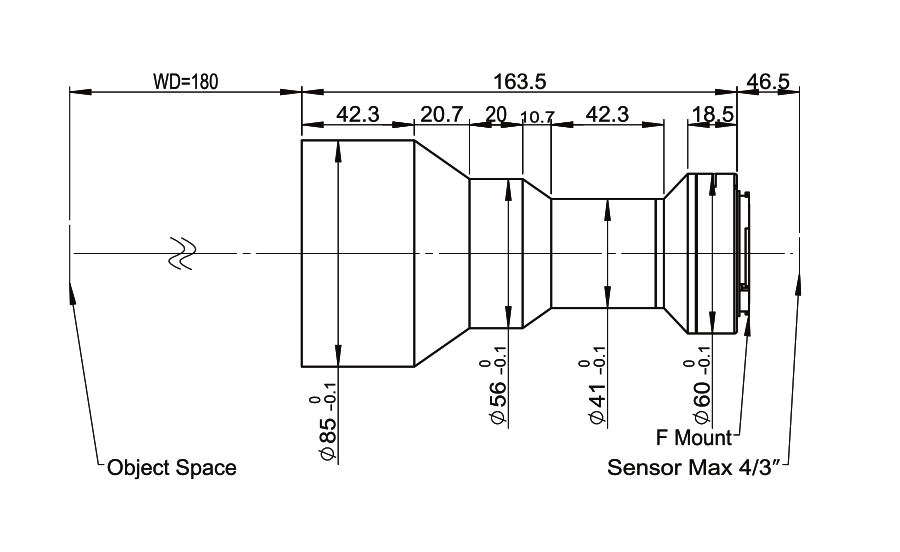

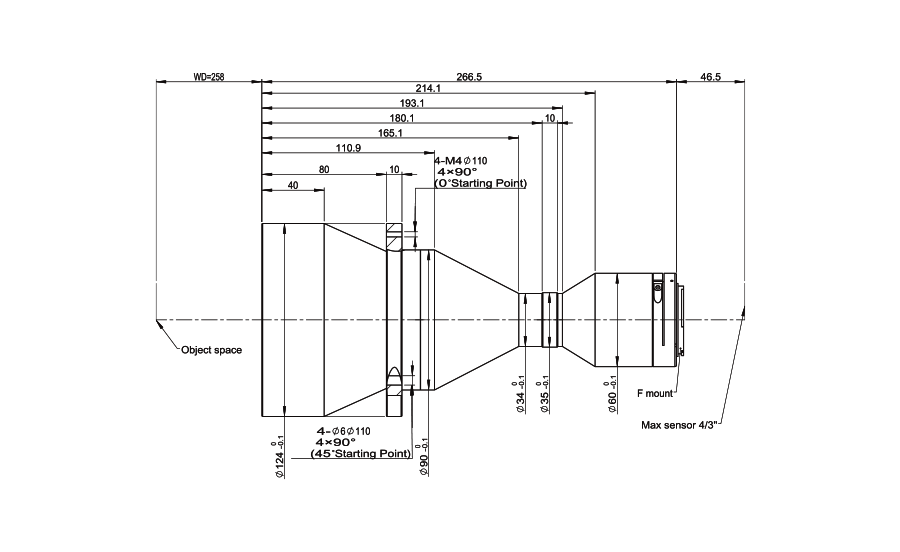

外形尺寸图

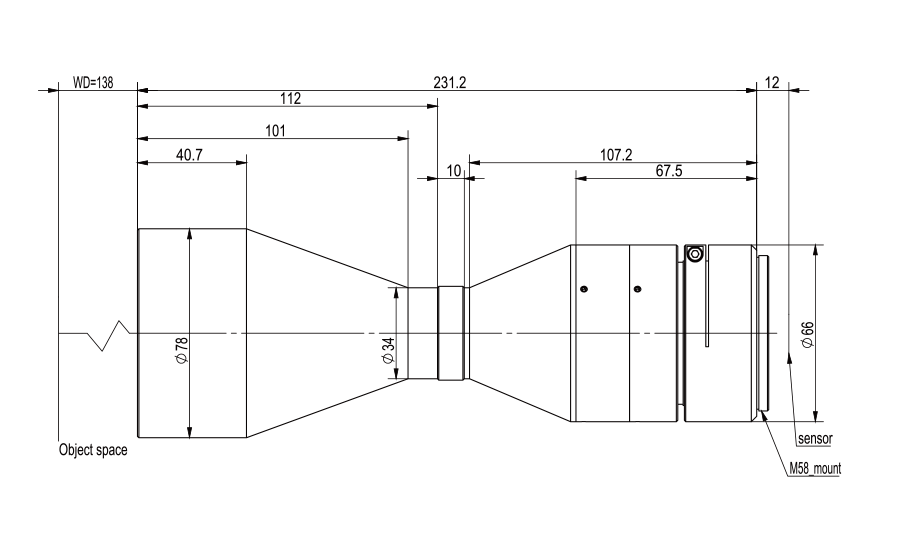

TCA39MM-0487-230-M58
