产品参数
产品案例
外形尺寸
产品参数
| 产品型号 | 放大倍率 | 工作距离 mm | 匹配的最大CCD尺寸 | 像方最佳F/# | 分辨率μm | 景深mm | 畸变% | 远心度 ° | 相机接口 | 尺寸规格mm×mm | 视野mm×mm |
| TCP35MM-075-180 | 0.75 | 180 | 35mm | 12 | 10.3 | 1.7 | ≤0.1 | ≤0.1 | F | Φ84×223.9 | 48.00×32.00 (35mm) |
| TCP35MM-2.0-65 | 2 | 65 | 2" | 9.6 | 2.6 | 0.2 | ≤0.1 | ≤0.1 | M58 | Φ42×246.1 | 11.50×11.50 (2") |
| TCP28.6MM-6.0-65 | 6 5 | 65 | 1.76" | 29.7 | 3.4 | 0.07 | ≤0.1 | ≤0.1 | F | Φ28×143 | 3.75×2.82 (1.76") |
| TCPC28.6MM-6.0-65 | 6 | 65 | 1.76" | 29.7 | 3.4 | 0.07 | ≤0.1 | ≤0.1 | F | Φ28×146.8 | 3.75×2.82 (1.76") |
| TCP43-0407-85 | 0.407 | 85 | 4/3" | 7.5 | 11.7 | 3.6 | ≤0.1 | ≤0.1 | C | Φ86×198.7 | 43.88×35.18 (4/3") |
| TCP43-055-83 | 0.55 | 83 | 4/3" | 8 | 11 | 2.1 | ≤0.1 | ≤0.1 | C | Φ54×99.7 | 32.47×26.04 (4/3") |
| TCP11-07-110 | 0.7 | 110 | 1.1" | 7.5 | 4.5 | 1.2 | ≤0.1 | ≤0.1 | C | Φ52×169.7 | 24.14×14.71 (1.1") |
| TCP11-1.5-110 | 1.5 | 110 | 1.1" | 11 | 4.7 | 0.4 | 《1 | ≤01 | C | Φ40×145.3 3 | 9.40×6.87 (1.1") |
| TCP11-4.0-108S | 4 | 108 | 1.1" | 20 | 2.9 | 0.1 | ≤0.1 | ≤0.1 | C | Φ32×162.4 | 3.53×2.58 (1.1") |
| TCP1-05-220 | 0.5 | 220 | 1" | 7.2 | 8.7 | 2.3 | ≤0.1 | ≤0.1 | C | Φ60×205.8 | 24.00×20.00 (1") |
| TCPV1-056-110 | 0.56 | 110 | 1.1" | 10 | 12.4 | 2.6 | ≤0.1 | ≤0.1 | C | Φ42×127 | 21.43×17.86 (1") |
| TCP1-07-120 | 0.7 | 120 | 1" | 10 | 10 | 1.6 | ≤0.1 | ≤0.1 | C | Φ48×128.7 | 17.14×14.29 (1") |
| TCP1-07-150 | 0.7 | 150 | 1" | 12 | 9.5 | 2 | ≤0.1 | ≤0.1 | C | Φ43×143.6 | 17.14×14.29 (1") |
| TCPV1-1.0-110 | 1 | 110 | 1" | 8.5 | 5.5 | 0.7 | ≤0.1 | ≤0.1 | C | Φ38.5×128.5 | 12.00×10.00 (1") |
| TCP1-2.0-110 | 2 | 110 | 1" | 13.5 | 4.2 | 0.3 | ≤0.1 | ≤0.1 | C | Φ36×133 | 6.00×5.00 (1") |
| TCP11-3.0-110-B | 3 | 110 | 1.1" | 19.1 | 3.9 | 0.2 | ≤0.1 | ≤0.1 | C | Φ34×162.6 | 4.71×3.45 (1.1") |
| TCP1-4.0-110-B | 4 | 110 | 1" | 22.8 | 3.5 | 0.1 | ≤0.1 | ≤0.1 | C | Φ36×162.2 | 3.00×2.50 (1") |
| TCP11-6.0-110-B | 6 | 110 | 1.1" | 34.4 | 3.1 | 0.08 | ≤0.1 | ≤0.1 | C | Φ32×169.1 | 2.36×1.73 (1.1") |
| TCP23-02-130 | 0.2 | 130 | 2/3" | 5.5 | 18 | 11 | ≤0.1 | ≤0.1 | C | Φ80×136.1 | 42.25×35.35 (2/3") |
| TCP23-03-110 | 0.3 | 110 | 2/3" | 5.6 | 17.5 | 4.9 | ≤0.1 | ≤0.1 | C | Φ54×116.9 | 28.17×23.57 (2/3") |
| TCP23-03-155 | 0.3 | 155 | 2/3" | 6.7 | 12.7 | 6 | ≤0.1 | ≤0.1 | C | Φ56×124.5 | 28.17×23.57 (2/3") |
| TCPV23-03-130 | 0.3 | 130 | 2/3" | 7.5 | 13.9 | 6.7 | ≤0.1 | ≤0.1 | C | Φ57×116.5 | 28.17×23.57 (2/3") |
| TCPV23-04-110 | 0.4 | 110 | 2/3" | 7 | 11.4 | 3.5 | ≤0.1 | ≤0.1 | C | Φ40.5×93.6 | 21.13×17.68 (2/3") |
| TCP23-04-150 | 0.4 | 150 | 2/3" | 6.6 | 11.9 | 3.3 | ≤0.1 | ≤0.1 | C | Φ43.0×109.0 | 21.13×17.68 (2/3") |
| TCP23-04-240 | 0.4 | 240 | 2/3" | 12 | 15.7 | 6 | ≤0.1 | ≤0.1 | C | Φ28×118.3 | 21.13×17.68 (2/3") |
| TCP23-06-130 | 0.6 | 130 | 2/3" | 7.5 | 8.8 | 1.7 | ≤0.1 | ≤0.1 | C | Φ43×116.5 | 14.08×11.78 (2/3") |
| TCP23-07-145 | 0.7 | 145 | 2/3" | 10.2 | 11 | 1.7 | ≤0.1 | ≤0.1 | C | Φ34×108.1 | 12.07×10.10 (2/3") |
| TCP23-07-460 | 0.7 | 460 | 2/3" | 15 | 15.5 | 2.4 | ≤0.1 | ≤0.1 | C | Φ34×157 | 12.07×10.10 (2/3") |
| TCP23-07-150 | 0.7 | 150 | 2/3" | 19.4 | 12.4 | 3.2 | ≤0.1 | ≤0.1 | C | Φ32×105.4 | 12.07×10.10 (2/3") |
| TCP23-08-255 | 0.8 | 255 | 2/3" | 13 | 12.4 | 1.6 | ≤0.1 | ≤0.1 | C | Φ37×149 | 10.56×8.84 (2/3") |
| TCPV23-08-130 | 0.8 | 130 | 2/3" | 7.5 | 7 | 0.9 | ≤0.1 | ≤0.1 | C | Φ36×128.6 | 10.56×8.84 (2/3") |
| TCP23-08-110 | 0.8 | 110 | 2/3" | 11 | 6.3 | 1.3 | ≤0.1 | ≤0.1 | C | Φ30×117.8 | 10.56×8.84 (2/3") |
| TCP23-1.0-110 | 1 | 110 | 2/3" | 10.4 | 5.6 | 0.8 | ≤0.1 | ≤0.1 | C | Φ28×123.4 | 8.45×7.07 (2/3") |
| TCPV23-1.0-110 | 1 | 110 | 2/3" | 10.4 | 7.4 | 0.8 | ≤0.1 | ≤0.1 | C | Φ34×123.6 | 8.45×7.07 (2/3") |
| TCPV23-1.0-65 | 1 | 65 | 2/3" | 7.5 | 4.8 | 0.6 | ≤0.1 | ≤0.1 | C | Φ32×82.8 | 8.45×7.07 (2/3") |
| TCPVC23-1.0-65 | 1 | 65 | 2/3" | 7.5 | 4.8 | 0.6 | ≤0.1 | ≤0.1 | C | Φ32×82.8 | 8.45×7.07 (2/3") |
| TCP23-1.0-170 | 1 | 170 | 2/3" | 10.4 | 7.4 | 0.8 | ≤0.1 | ≤0.1 | C | Φ36×161.7 | 8.45×7.07 (2/3") |
| TCPC23-1.0-170 | 1 | 170 | 2/3" | 10.4 | 7.4 | 0.8 | ≤0.1 | ≤0.1 | C | Φ36×165.8 | 8.45×7.07 (2/3") |
| TCP23-1.0-310 | 1 | 310 | 2/3" | 15.6 | 12 | 1.2 | ≤0.1 | ≤0.1 | C | Φ42×177.4 | 8.45×7.07 (2/3") |
| TCP23-2.0-110 | 2 | 110 | 2/3" | 16.55 | 5.5 | 0.3 | ≤0.1 | ≤0.1 | C | Φ32×132.8 | 4.23×3.54 (2/3") |
| TCP23-2.0-110H | 2 | 110 | 2/3" | 12.2 | 5 | 0.2 | ≤0.1 | ≤0.1 | C | Φ30×133.4 | 4.23×3.54 (2/3") |
| TCP23-2.0-65 | 2 | 65 | 2/3" | 13.5 | 6 | 0.3 | ≤0.1 | ≤0.1 | C | Φ28×77.6 | 4.23×3.54 (2/3") |
| TCP23-3.0-110H | 3 | 110 | 2/3" | 18.3 | 3.1 | 0.16 | ≤0.1 | ≤0.1 | C | Φ30×165.7 | 2.82×2.36 (2/3") |
| TCP118-03-180 | 0.3 | 180 | 1/1.8" | 5.4 | 13 | 4.8 | ≤0.1 | ≤0.1 | C | Φ51×142.1 | 23.87×18.13 (1/1.8") |
| TCPV118-05-65 | 0.5 | 65 | 1/1.8" | 6 | 6.7 | 1.9 | ≤0.1 | ≤0.1 | C | Φ36×737 | 14.32×10.88 (1/1.8") |
| TCP118-05-300 | 0.5 | 300 | 1/1.8" | 9.5 | 16 | 3 | ≤0.1 | ≤0.1 | C | Φ42×142.5 | 14.32×10.88 (1/1.8") |
| TCP118-07-220 | 0.7 | 220 | 1/1.8" | 9.5 | 11 | 1.6 | ≤0.1 | ≤0.1 | C | Φ37×132.4 | 10.23×7.77 (1/1.8") |
| TCP125-014-190 | 0.14 | 190 | 1/2.5" | 4.8 | 20 | 19.6 | ≤0.1 | ≤0.1 | C | Φ78.5×186.3 | 40.71×30.57 (1/2.5") |
| TCP125-03-110 | 0.3 | 110 | 1/2.5" | 8.9 | 20 | 7.9 | ≤0.1 | ≤0.1 | C | Φ34×119.5 | 19.00×14.27 (1/2.5") |
| TCPV125-05-65 | 0.5 | 65 | 1/2.5" | 6 | 6.7 | 1.9 | ≤0.1 | ≤0.1 | C | Φ30×73.7 | 11.40×8.56 (1/2.5") |
| TCP125-05-170 | 0.5 | 170 | 1/2.5" | 9.3 | 12.6 | 3 | ≤0.1 | ≤0.1 | C | Φ30×91.2 | 11.40×8.56 (1/2.5") |
| TCP125-055-200 | 0.55 | 200 | 1/2.5" | 9 | 11 | 2.4 | ≤0.1 | ≤0.1 | C | Φ30×115.5 | 10.36X7.78( (1/2.5") |
| TCP12-1.0-65 | 1 | 65 | 1/2" | 14 | 8.8 | 1.1 | ≤0.1 | ≤0.1 | C | Φ26×72.9 | 6.40×4.80 (1/2") |
产品案例
外形尺寸图
TCP35MM-075-180
TCP35MM-2.0-65
TCP28.6MM-6.0-65

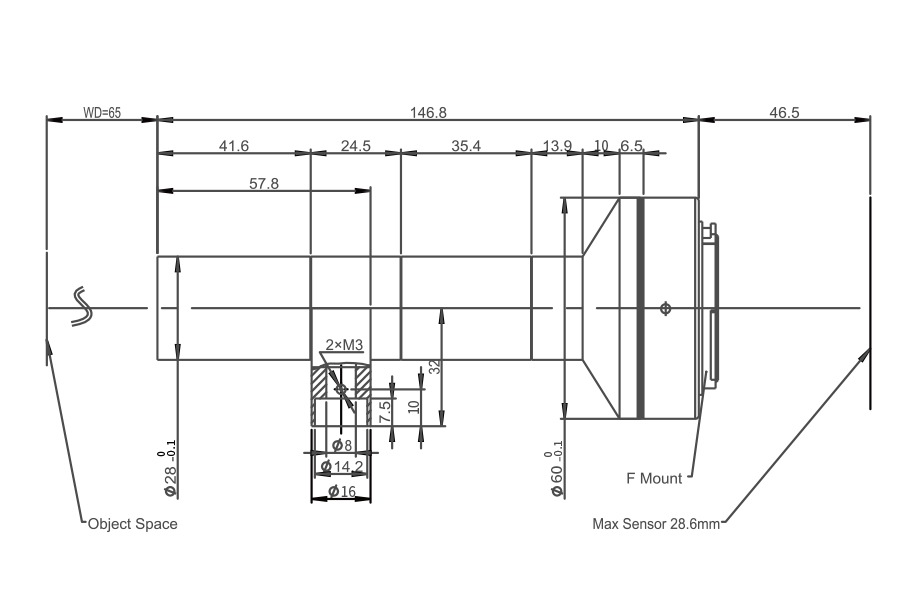

TCPC28.6MM-6.0-65
TCP43-0407-85
TCP43-055-83
TCP11-07-110
TCP11-1.5-110
TCP11-4.0-108S
TCP1-05-220
